Engineered for precise anatomical restoration and robust stability. Our orthopedic intramedullary nails are designed to meet diverse clinical applications with simple, minimally invasive implantation protocols.
| Product Name | Model | Specification | Material | Code |
|---|---|---|---|---|

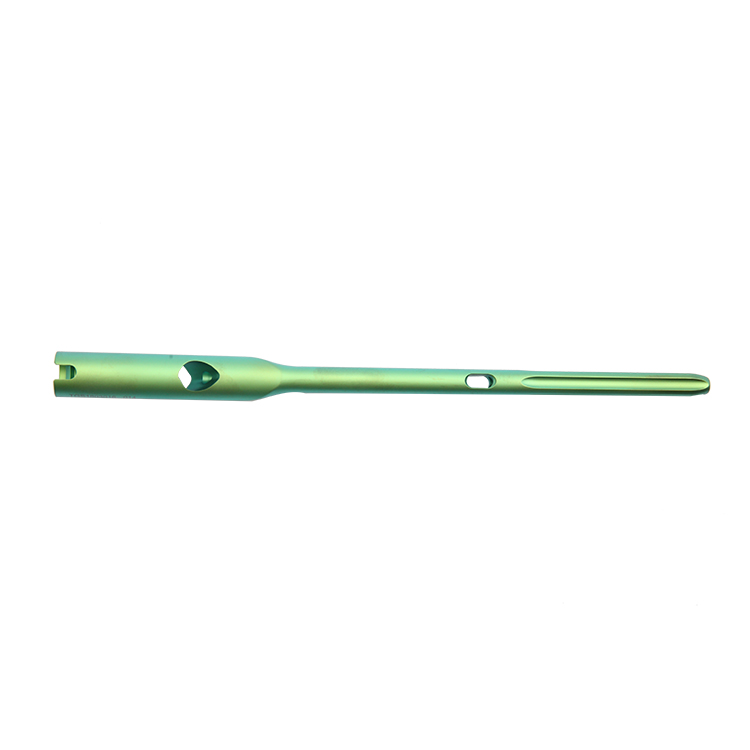

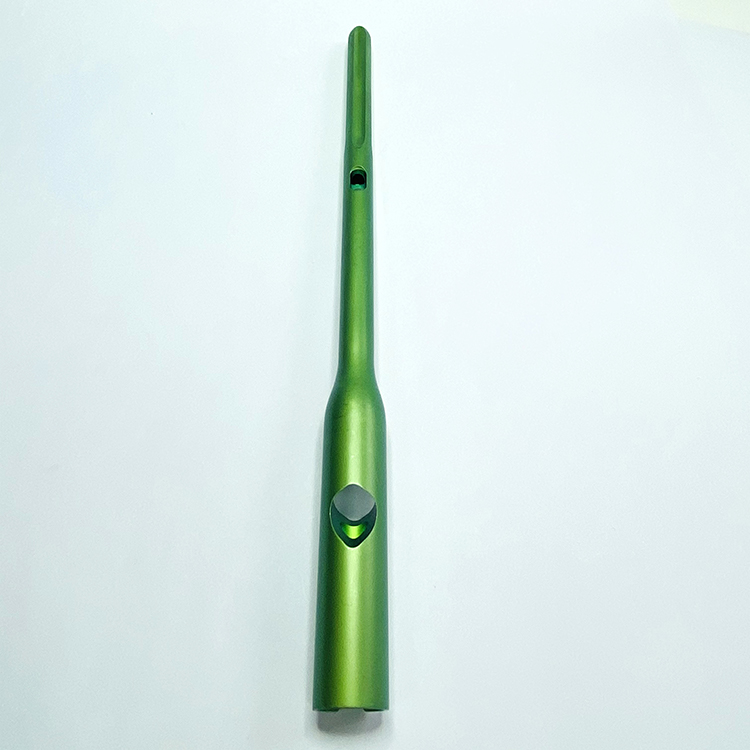

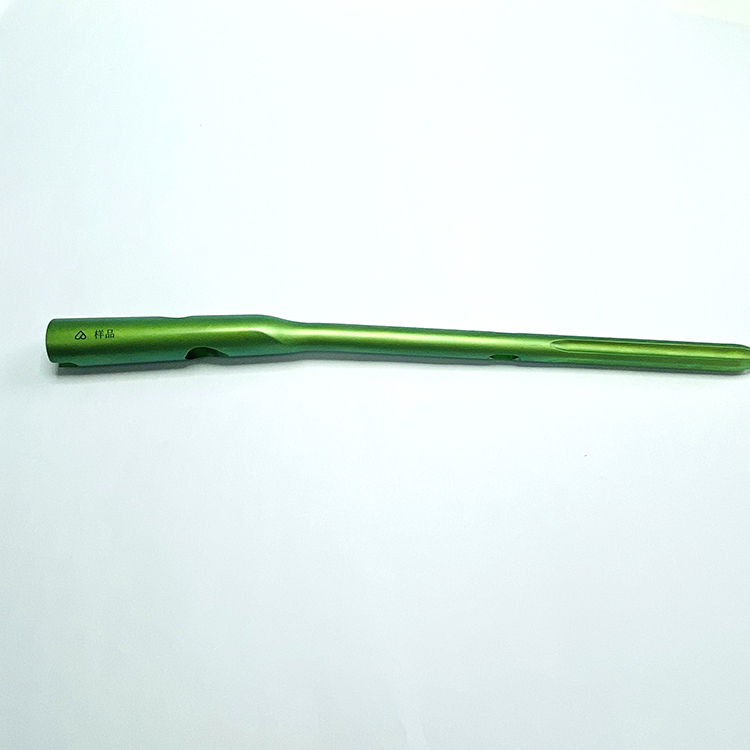

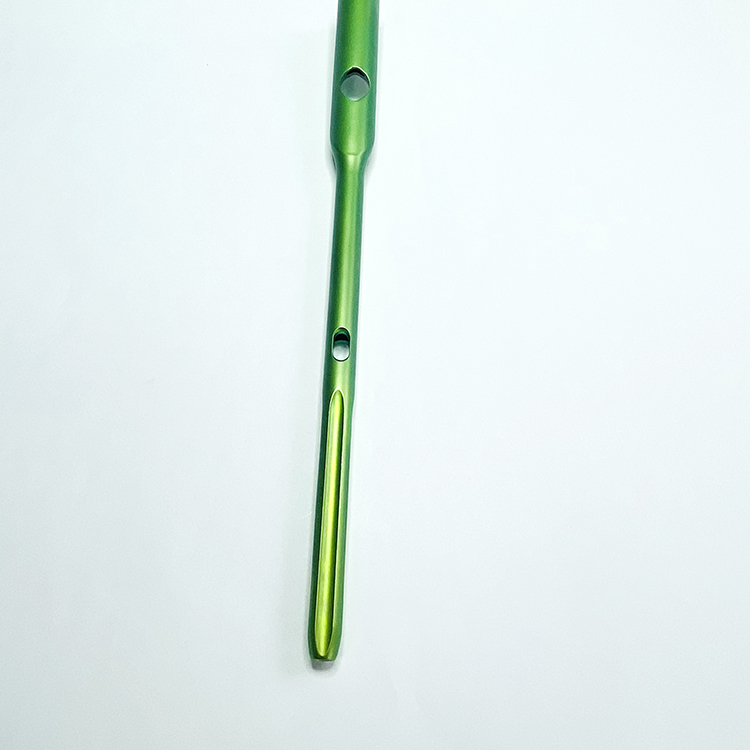

| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×170×130° | Titanium Alloy | 15649170 |
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×200×130° | Titanium Alloy | 15649200 |
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×240×130° | Titanium Alloy | 15649240 |
| Proximal Femoral Nail Antirotation End Cap | SGM-IIK | 10×15 | Titanium Alloy | 15601115 |
| Proximal Femoral Nail Antirotation End Cap | SGM-IIK | 10×20 | Titanium Alloy | 15601120 |
| Proximal Femoral Nail Antirotation Blade | SGM-IIK | 10.5×70 | Titanium Alloy | 15600570 |
| Proximal Femoral Nail Antirotation Blade | SGM-IIK | 10.5×80 | Titanium Alloy | 15600580 |
| Proximal Femoral Nail Antirotation φ4.9 locking screw | SGM-IIK | 4.9×30--72 | Titanium Alloy | 15604930 |
| Femoral Nail locking screw I | SGG-IIIK | 6.5×75 | Titanium Alloy | 15246575 |
| Femoral Nail Intramedullary Nail | SGG-IIIK | 9.0-13.0 | Titanium Alloy | 15249340 |
| Humeral nail Intramedullary Nail | SHG-IK | 8 | Titanium Alloy | 15728160 |
The optimized curvature length aligns perfectly with the biological anatomy of the FEMORAL medullary cavity, ensuring smooth placement and load sharing.
Specially structured to significantly enhance fixation strength within osteoporotic bone. Features a Blunt End Design for locking screws to mitigate the risk of unwanted penetration.
Available in Left and Right designs configured to cover standard and customized ranges: Short nails (diameter 8.0 / 9.5mm, length 160mm) and Long nails (diameter 7.0 / 8.5mm, length 180-315mm with 15mm intervals).
Equipped with multiple multi-plane locking options to achieve optimal stability for complex fracture lines. Features countersunk locking screws to alleviate tissue irritation.
Short screw designs carry double plane locking. Long screws incorporate three specialized locking holes mapped carefully to safely avoid neurovascular structures.
Perfectly calibrated to fill 30-40% of the narrowest diameter of the medullary cavity. Optimized sizes: 3.0mm (for 6-8 years), 3.5mm (for 9-11 years), and 4.0mm (for 12-14 years).
Integrated compression design holes increase primary axial stability. Works on a self-sustaining mechanism that requires no static screw to preserve compression throughout the repair.
Developed with an optimized 1.0m curvature radius. Increases centering predictability inside the canal twice as effectively as legacy 1.5m radius designs.
A: Standard shipments are dispatched via express courier networks including DHL, FEDEX, UPS, and TNT. Shipping costs depend on consignment weight and the destination.
A: Yes, our production operations and orthopedic devices are fully certified in compliance with ISO 9001, ISO 13485, and CE quality standards.
A: Our standard initial order value is US$500. We offer sample orders to facilitate validation testing, providing the samples for free with freight charges covered by the purchaser.
A: Yes, customized developments based on images, specifications, or reference physical samples are supported. Please note that custom production requires extended lead times.
A: We maintain a baseline inventory for all catalog items. For payments under US$800, we require 100% advance payment. For transactions over US$800, payment terms are 30% T/T in advance, with the balance due before dispatch. We accept T/T, L/C, Western Union, and PayPal.
A: All orthopedic nails, blades, and locking screws are constructed using high-grade, biocompatible Titanium Alloy, optimizing strength and reducing biological rejection risks.
