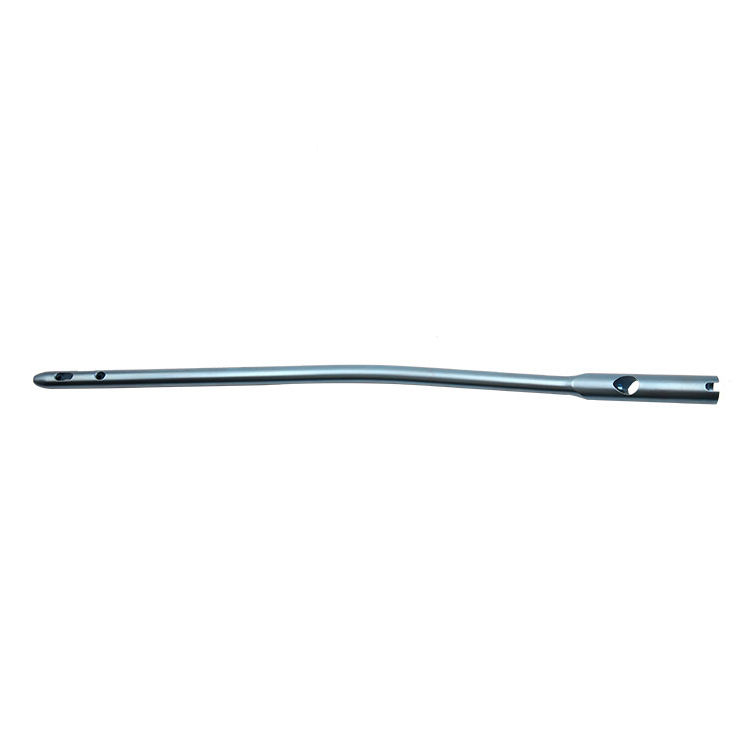

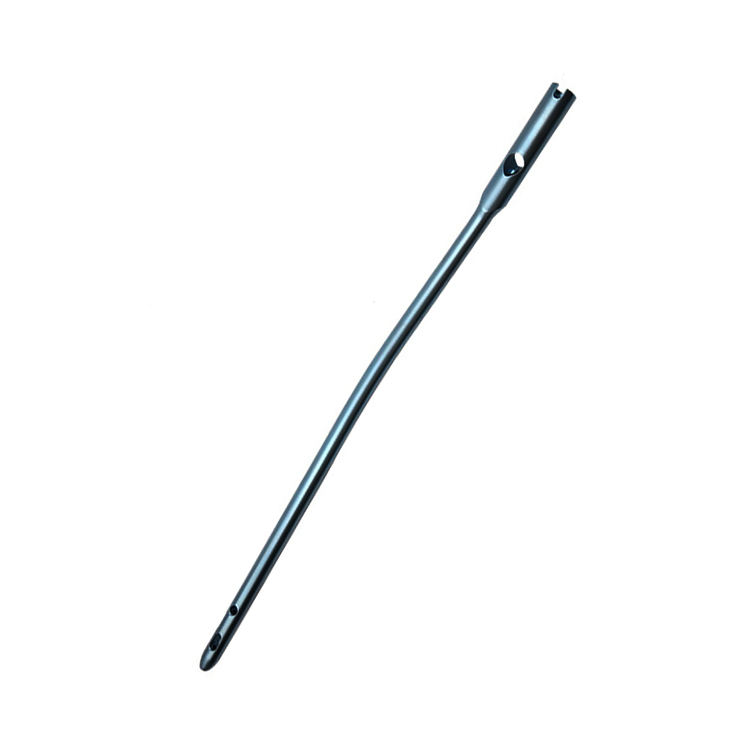

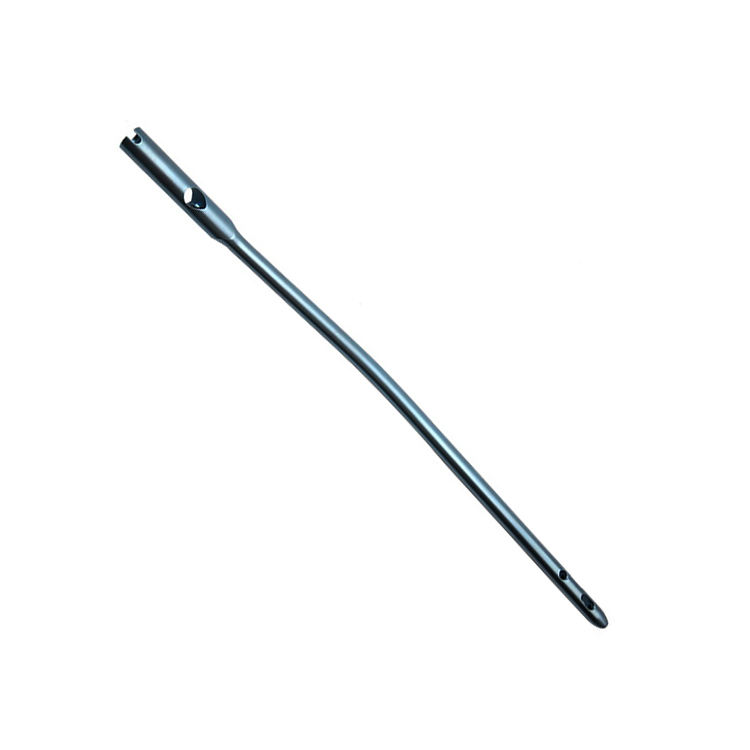

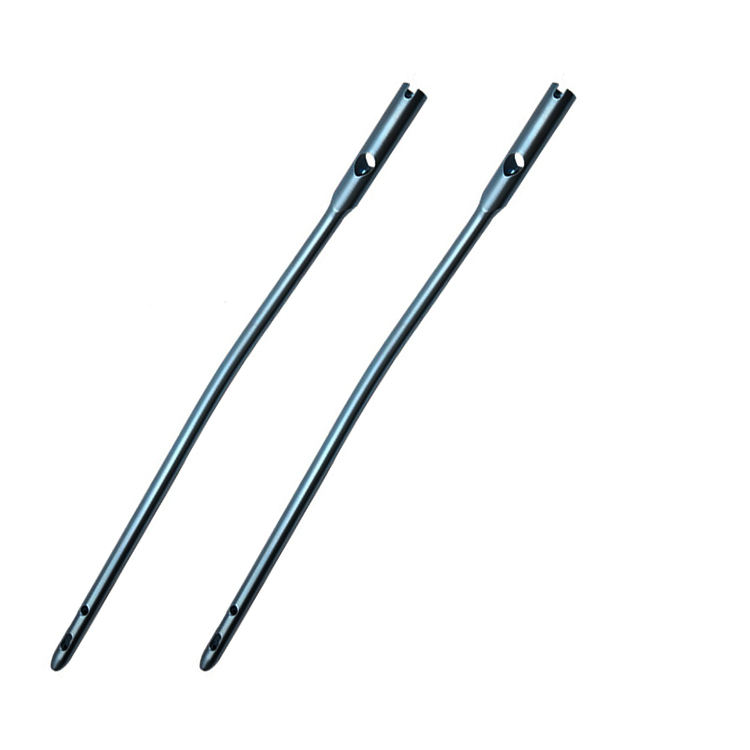

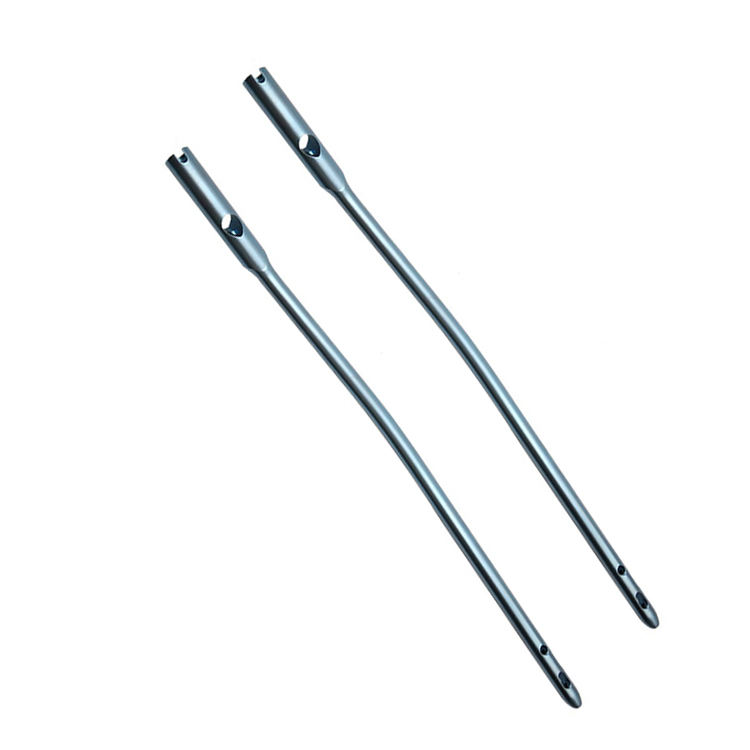

Geasure Titanium Alloy Interlocking Nail Orthopedic Implant for Proximal Implants Interventional Materials

Product Description

Intramedullary Nail Showcase 1
Intramedullary Nail Showcase 2
Intramedullary Nail Showcase 3
Product Specifications
💡
Intramedullary Nail Features: All kinds of high quality intramedullary nails. Easy to insert and take out; Titanium alloy material; Reduce the risk of outer wall impact and main nail inward movement; The diameter is suitable for all applications; Simple operation and minimally invasive implantation.
Product name Model Material Specification Code
Proximal Femoral Nail Antirotation Intramedullary Nail (non sterilization) SGM-IIK Titanium Alloy 10.0×320×130° Left 15640320
Product name Model Specification Material Code
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×170×130° Titanium Alloy 15649170
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×200×130° Titanium Alloy 15649200
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×240×130° Titanium Alloy 15649240
Proximal Femoral Nail Antirotation End Cap SGM-IIK 10×15 Titanium Alloy 15601115
Proximal Femoral Nail Antirotation End Cap SGM-IIK 10×20 Titanium Alloy 15601120
Proximal Femoral Nail Antirotation Blade SGM-IIK 10.5×70 Titanium Alloy 15600570
Proximal Femoral Nail Antirotation Blade SGM-IIK 10.5×80 Titanium Alloy 15600580
Proximal Femoral Nail Antirotation φ4.9 locking screw SGM-IIK 4.9×30--72 Titanium Alloy 15604930
Femoral Nail locking screw I SGG-IIIK 6.5×75 Titanium Alloy 15246575
Femoral Nail Intramedullary Nail SGG-IIIK 9.0-13.0 Titanium Alloy 15249340
Humeral nail Intramedullary Nail SHG-IK 8 Titanium Alloy 15728160
Our Advantages
Advantage Overview 1
Advantage Overview 2
1 1.0m Radian Radius
The length is consistent with the anatomy of the FEMORAL medullary cavity.
1.0m Radian Radius Diagram
2 Screw-in-Screw Design
To further improve the fixation strength of osteoporosis. The Blunt End Design of the locking screw reduces the risk of excessive penetration.
Screw-in-Screw Design Diagram
3 Nail Dimensions & Material Options
Short nail: diameter of 8.0 / 9.5mm, length of 160mm.
Long nail: diameter of 7.0 / 8.5mm, length of 180-315mm (15mm interval).
All nails have left and right types, made of premium titanium alloy material. The diameter is suitable for all applications. Simple operation and minimally invasive implantation.
Details Images
Proximal fixation detailed image
Proximal Fixation
Multi-plane and Multi-locking screw fixation options, multiple options for operation, to achieve optimal fixation stability. Screw-in-screw design to further improve the fixation strength of osteoporosis. Blunt head of locking screw design to reduce the risk of excessive penetration. Locking screw countersinking design to reduce soft tissue irritation.
Distal fixation detailed image
Distal Fixation
Short screw: two different plane holes for locking.
Long screw: three locking holes avoid important blood vessels, located in the safe area between the median nerve and the radial nerve. Two anterior and posterior locking holes facilitate the manual operation, minimizing the occurrence of rotation and displacement of distal fracture.
Elastic Nail detailed image
Elastic Nail
Nail diameter should be 30-40% of the narrowest transverse diameter of medullary cavity. Apply to:
• 3.0mm / 6-8 years old
• 3.5mm / 9-11 years old
• 4.0mm / 12-14 years old
Compression mechanism detailed image
Compression Mechanism
Special design of compression holes helps to increase the stability of transverse or short oblique fractures. Self-sustaining compression mechanism, no static screw is needed to maintain compression during operation.
TFNA System detailed image
TFNA System
Compared with G3 with radian radius of 1.5m, the distal location of TFNA with radian radius of 1.0m in the center of medullary cavity is twice as likely as that of G3.
Orthopedic Medical Devices
Spinal Fusion Cages and Implants
Intramedullary Interlocking Nails Showcase
Manufacturing Facility & Quality Control
Manufacturing Cleanroom Facility 1
High Precision CNC Machinery 2
Quality Inspection Center 3
Frequently Asked Questions (FAQ)
Would you please give some information on shipping mode and charges?
Normally we send through couriers like DHL, FEDEX, UPS, TNT etc. or post upon request from clients.
Do you have ISO9001, ISO 13485, CE approvals?
Yes, our products are manufactured under strict compliance with ISO9001, ISO 13485, and CE quality standards to ensure safety and clinical effectiveness.
What is the minimum order that we can place? Do you provide free samples?
We expect your minimum orders to be at least US$500. However, we understand that customers need to place smaller sample orders in the beginning to test the market for our products. We could offer free samples, but the cost of freight is not covered.
Can I buy products not shown but similar to your catalogue?
Of course you can, just send us pictures or samples. Please note that this may require a slightly longer time for customized production and delivery.
Do you have stock for listed products, or they are newly produced?
Generally, we maintain stock for every listed product, which is replenished monthly. However, this depends on current sales conditions. We suggest contacting our sales representatives for accurate real-time inventory information.
What are your terms of payment and accepted methods?
For payments less than or equal to 800 USD, 100% in advance. For payments greater than 800 USD, 30% T/T in advance is required, with the balance paid before shipment. Accepted payment methods include L/C, T/T, Western Union, and PayPal.
