| Product name | Model | Specification | Material | Code |
|---|---|---|---|---|

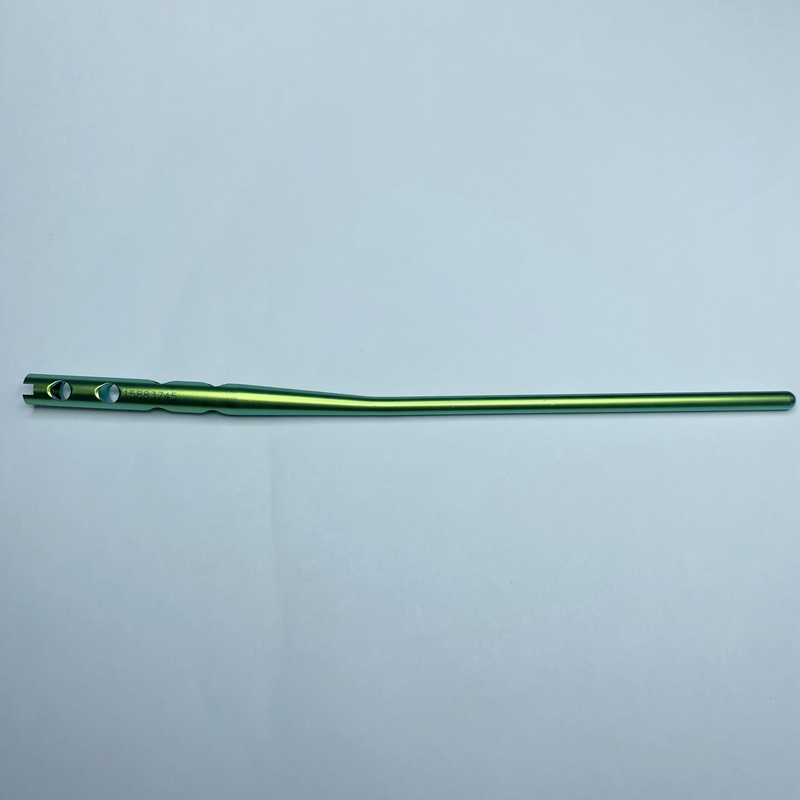

| Fibular Nail Mini nail | SWX-IIIS | 3.0×145 | Titanium Alloy | 15883145 |
All kinds of high quality intramedullary nails. Easy to insert and take out; Titanium alloy material; Reduce the risk of outer wall impact and main nail inward movement; The diameter is suitable for all applications; Simple operation and minimally invasive implantation.
Quality Raw Material, Advanced Facilities, Fine Procedures.
Ensuring fast production cycles and efficient processing.
Quick turnaround times to meet demand schedules.
Leading Level R & D Department & Professional Design Department.
Tailored manufacturing capabilities to meet specific customer requirements.
Experienced Marketing Manager & Excellent After-sales Service support.
| Product name | Model | Specification | Material | Code |
|---|---|---|---|---|

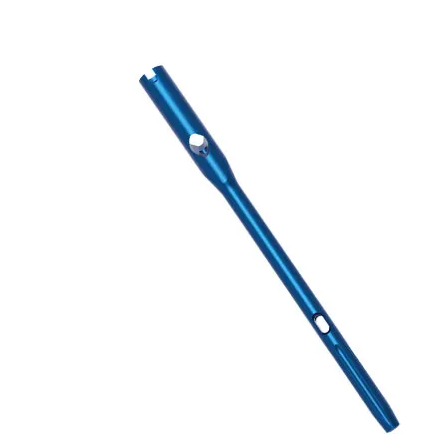

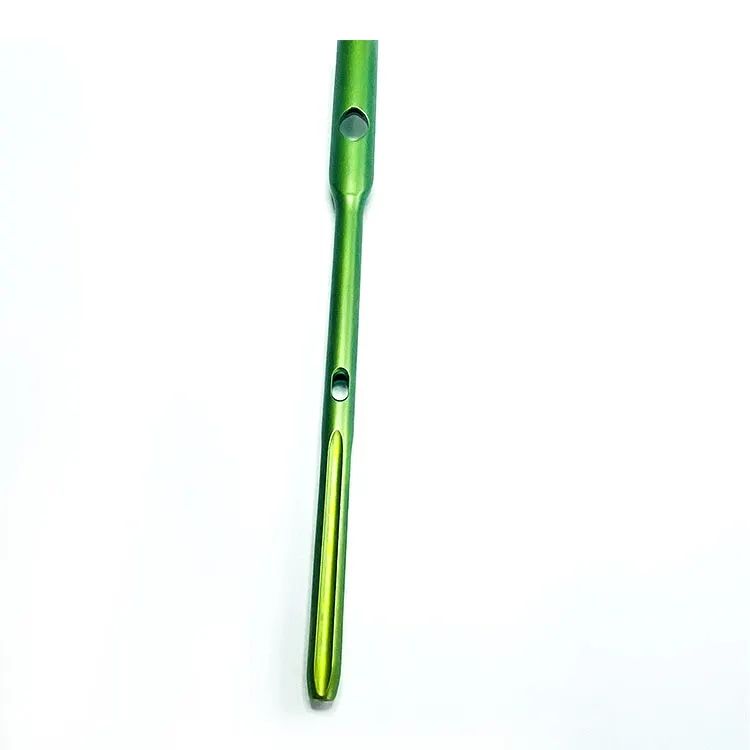

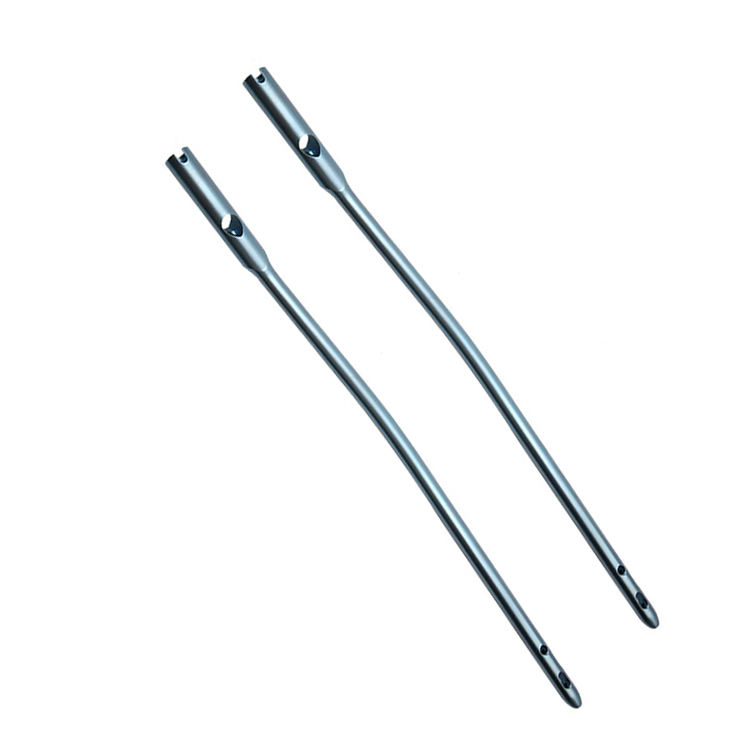

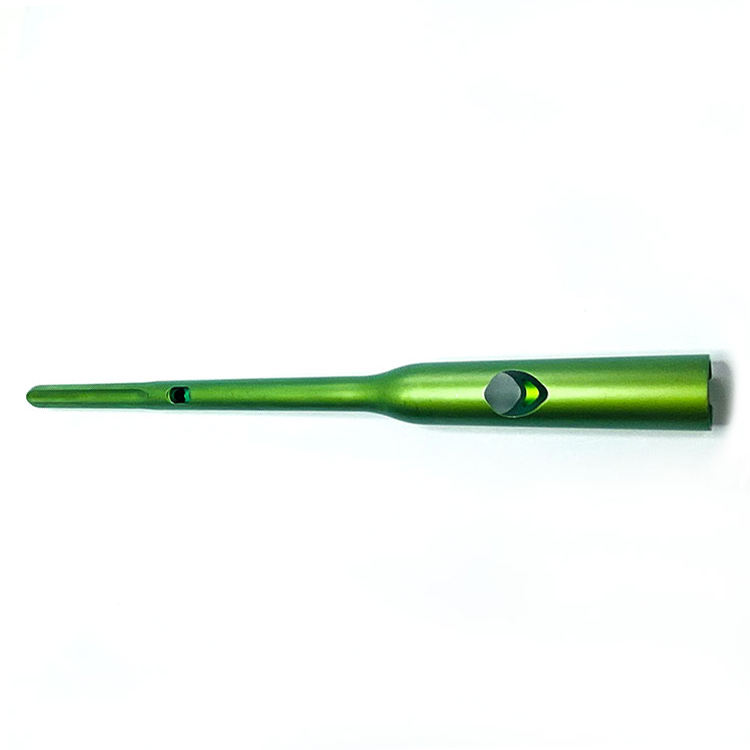

| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×170×130° | Titanium Alloy | 15649170 |
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×200×130° | Titanium Alloy | 15649200 |
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×240×130° | Titanium Alloy | 15649240 |
| Proximal Femoral Nail Antirotation End Cap | SGM-IIK | 10×15 | Titanium Alloy | 15601115 |
| Proximal Femoral Nail Antirotation End Cap | SGM-IIK | 10×20 | Titanium Alloy | 15601120 |
| Proximal Femoral Nail Antirotation Blade | SGM-IIK | 10.5×70 | Titanium Alloy | 15600570 |
| Proximal Femoral Nail Antirotation Blade | SGM-IIK | 10.5×80 | Titanium Alloy | 15600580 |
| Proximal Femoral Nail Antirotation φ4.9 locking screw | SGM-IIK | 4.9×30--72 | Titanium Alloy | 15604930 |
| Femoral Nail locking screw I | SGG-IIIK | 6.5×75 | Titanium Alloy | 15246575 |
| Femoral Nail Intramedullary Nail | SGG-IIIK | 9.0-13.0 | Titanium Alloy | 15249340 |
| Humeral nail Intramedullary Nail | SHG-IK | 8 | Titanium Alloy | 15728160 |
The length is consistent with the anatomy of the FEMORAL medullary cavity.
To further improve the fixation strength of osteoporosis. The Blunt End Design of the locking screw reduces the risk of excessive penetration.
Short nail: diameter of 8.0 / 9.5mm, length of 160mm.
Long nail: diameter of 7.0 / 8.5mm, length of 180-315mm (15mm interval).
All nails have left and right types, made of titanium alloy material. The diameter is suitable for all applications. Simple operation and minimally invasive implantation.
Multi-plane and Multi-locking screw fixation options, multiple options for operation, to achieve optimal fixation stability. Screw-in-screw design to further improve the fixation strength of osteoporosis. Blunt head of locking screw design to reduce the risk of excessive penetration. Locking screw countersinking design to reduce soft tissue irritation.
Short screw: two different plane holes for locking. Long screw: three locking holes avoid important blood vessels, located in the safe area between the median nerve and the radial nerve. Two anterior and posterior locking holes facilitate manual operation, minimizing the occurrence of rotation and displacement of distal fracture.
Nail diameter should be 30-40% of the narrowest transverse diameter of medullary cavity. Apply to 3mm / 6-8 years old; 3.5mm / 9-11 years old; 4.0mm / 12-14 years old.
Special design of compression holes helps to increase the stability of transverse or short oblique fractures. Self-sustaining compression mechanism, no static screw is needed to maintain compression during operation.
Compared with G3 with radian radius of 1.5m, the distal location of TFNA with radian radius of 1.0m in the center of medullary cavity is twice as likely as that of G3.
We are a leading orthopedic medical device R & D, manufacturing and operation enterprise in China. We focus on the development, manufacturing and sales of orthopedic trauma, spine and bone joint implants and devices. Our sales network covers the country and we have established offices in many regions. With first-class production equipment, professional R & D, technology and manufacturing teams, a quality management system in line with international standards, and efficient marketing service strategies, we have won the affirmation of many partners.
Our senior R & D technical team holds many years of experience in orthopedic medical devices, driving unique achievements in the field. We put talent development strategies first, continuously building a professional innovation team with high quality and strong R & D ability. Adhering to the development concept of technological innovation, product innovation, and service innovation, we gather and integrate advantageous resources to serve the great cause of human health, working hard and moving forward bravely.
A: Normally we send through couriers like DHL, FEDEX, UPS, TNT etc., or post upon request from clients.
A: Yes, our products are manufactured in compliance with international standards and we hold certifications necessary for premium orthopedic implant distribution.
A: We expect your minimum orders to be at least US$500. However, we understand that customers may need to place smaller sample orders initially in order to test market our products. We can offer free samples, but do not cover the cost of freight.
A: Of course you can, just send us pictures or samples. Please note this may take a little longer for delivery.
A: Generally, we maintain stock for listed products, which are produced monthly. However, this depends on sales conditions. We advise contacting our sales team for precise inventory status. Payment <= 800 USD, 100% in advance. Payment > 800 USD, 30% T/T in advance, balance before shipment. We accept payment via L/C, T/T, Western Union, PayPal etc.
A: Our products, including the intramedullary nails, are made of high-quality Titanium Alloy, ensuring excellent biocompatibility, strength, and durability.
