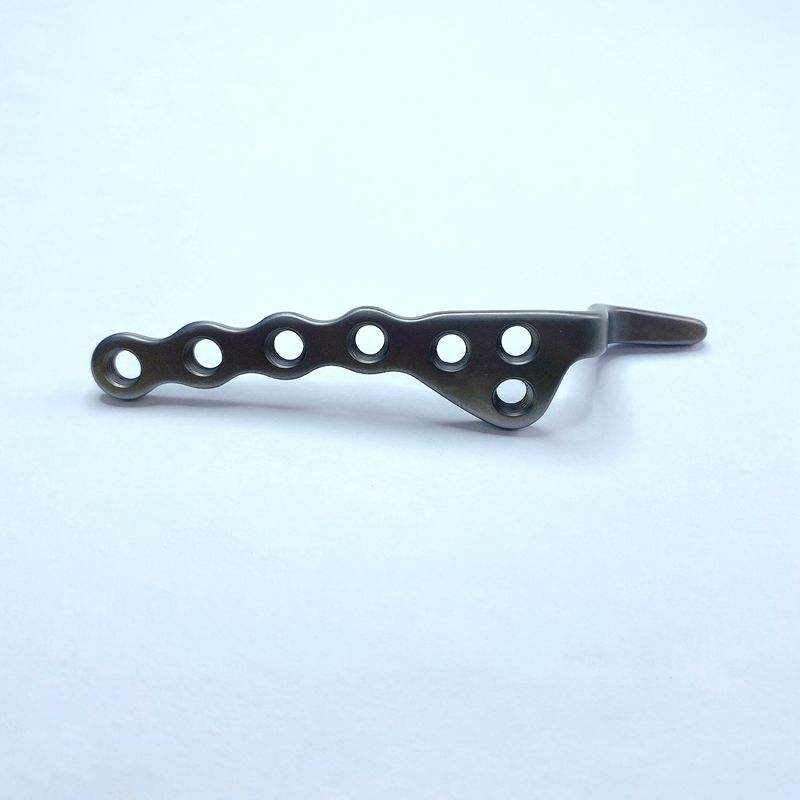

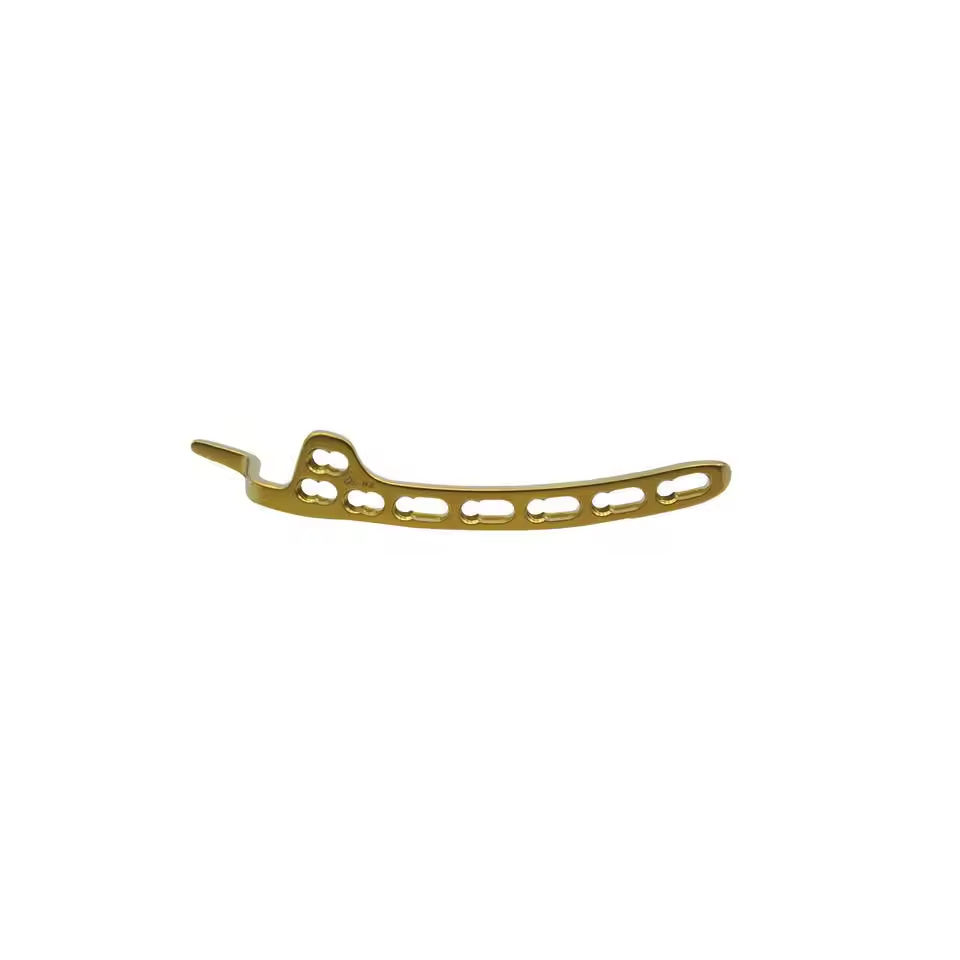

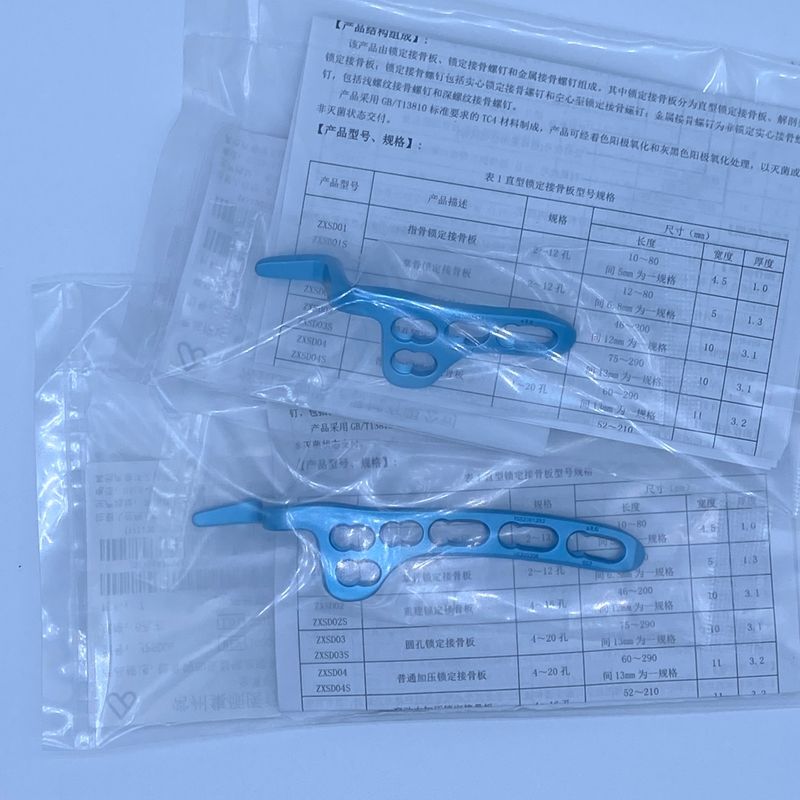

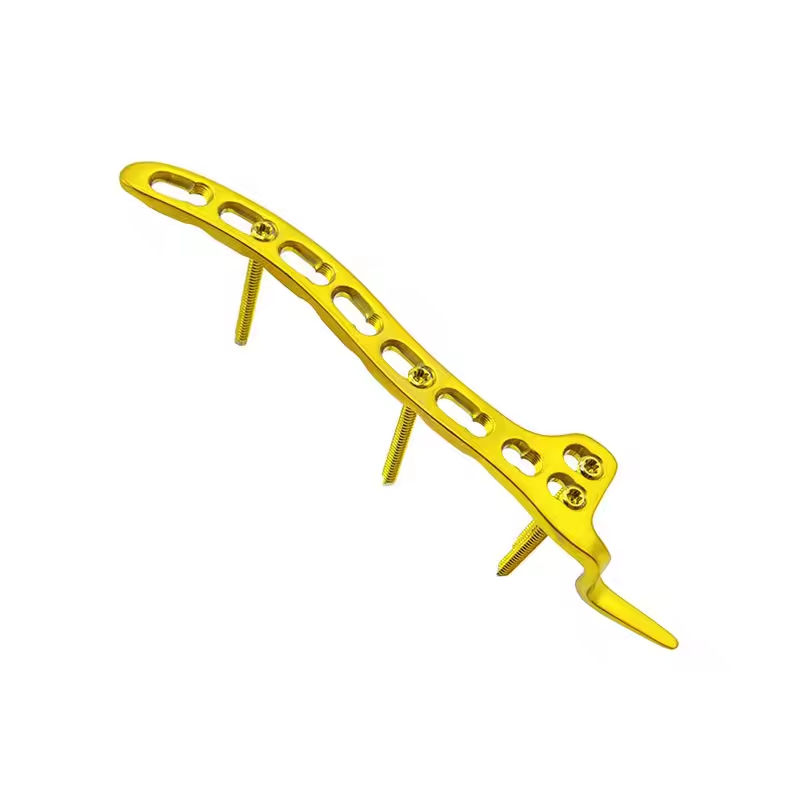

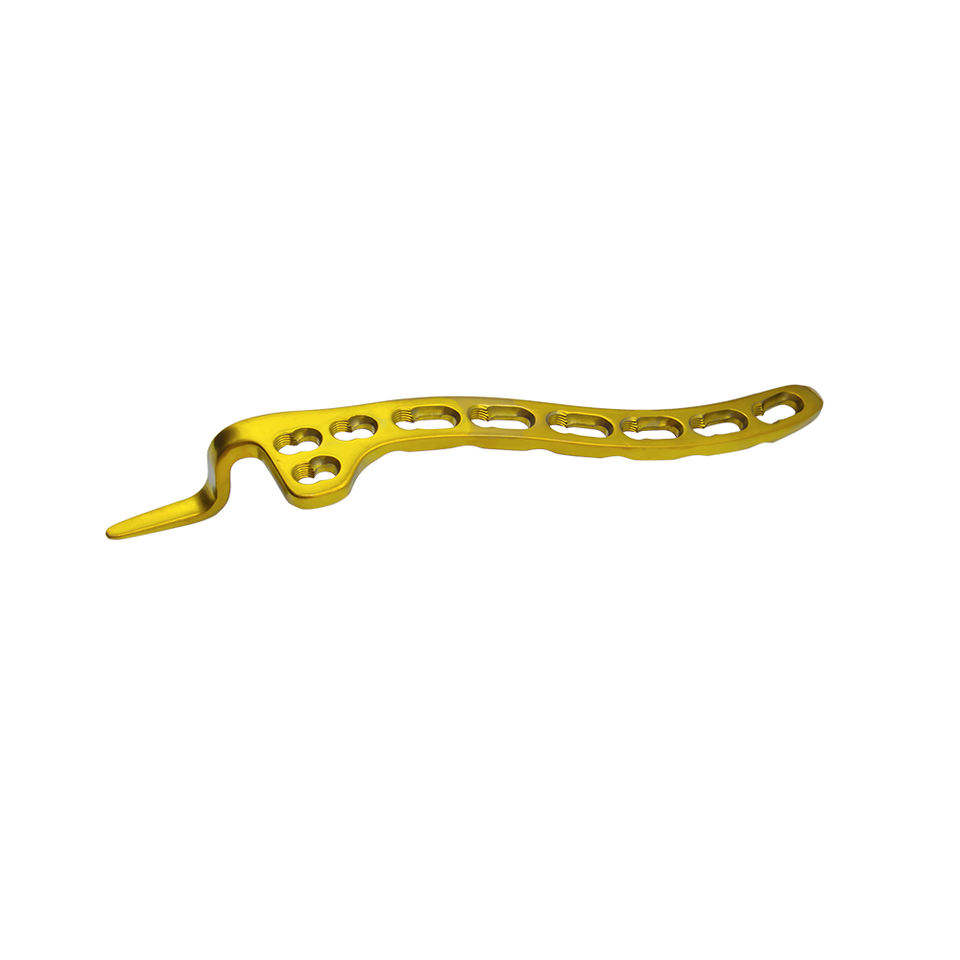

Geasure Surgical Titanium Trauma Locking Clavicle Hook Plate 3.5mm Hook Small Fragment Bone Implant Orthopedic

Product Description

Product Presentation Banner
Products Description
Products Range
Product name Model Specification Material Code
Clavicular Hook Locking Plate II JPSD90 4--10 hole Titanium Alloy 10300204
Locking Plate: It is suitable for internal fixation of fractures of limbs, pelvis, clavicle and hands and feet. Optimize the pre-processed plate and design low profile. Can choose the fixed Angle freely according to the fracture situation.
Product name Model Specification Material Code 5--20 20 and above
Reconstruction Locking Plate ZXSD02 6 hole Titanium Alloy 10010006 57.95 54.9
Narrow Dynamic Locking Plate II ZXSD05 6--14 hole Titanium Alloy 10040406 54.15 51.3
Humeral compression locking plate JPSD13 4--16 hole Titanium Alloy 10350203 57.95 54.9
Clavicular Hook Locking Plate JPSD09 4--8 hole Titanium Alloy 10300204 56.05 53.1
Clavicular Hook Locking Plate II JPSD90 4--10 hole Titanium Alloy 10300204 57 54
Reconstruction Clavicular Locking Plate IV JPSD94 7-9 hole Titanium Alloy 11150207 76 72
Proximal humeral locking plate JPSD33 3--14 hole Titanium Alloy 10540203 58.9 55.8
Obique T- Locking Plate JPSD07 3 hole Titanium Alloy 10280203 58.9 55.8
Distal lateral humeral locking plate JPSD13 3--11 hole Titanium Alloy 10280203 68.5 64.8
Proximal ulnar locking plate JPSD15 3--12 hole Titanium Alloy 10360203 71.25 67.5
Distal radial locking plate II JPSD78 3--8 hole Titanium Alloy 10990203 40.85 38.7
Our Advantages
Our Advantages Overview
Countersunk head of screw
1 Countersunk head of screw:
Titanium alloy material. The possibility of the screw head plate protrusion is reduced, and the fixing direction is more convenient to adjust.
2.4mm locking screw
2 2.4mm locking screw:
High Security. Offering reliable insertion, the round, thin, blunt edge design allows for minimally invasive muscle penetration, adhesion to bone surfaces, and reduced tissue irritation.
Variable locking plate
3 1.3/ 1.5mm Phalanx variable locking plate (titanium alloy material):
Easy to operate. Extension holes in the middle of the plate to adjust the position of the plate. Plate can be placed on the ulnar and radial sides of the phalanx.
Details Images
Metatarsophalangeal joint fusion plate
2.4/ 2.7mm First metatarsophalangeal joint fusion variable locking plate (titanium alloy material):
3 different dorsiflexion angles, 0/ 5/ 10 respectively, are suitable for different joints. Reliable. Kirschner wire compression holes and slots in the middle of plate. Etching lines on the plate indicate the correct fusion position.
Medial-lateral distal humeral locking plate
Medial-lateral distal humeral locking plate:
Plates are anatomically precontoured. With countersinkable head design of 2.7mm screw to reduce tissue irritation. 5 types of medial-lateral distal humeral locking plates allow doctors to determine fracture fixation schemes according to the condition.
Phalanx variable locking plate
1.3/ 1.5mm Phalanx variable locking plate (titanium alloy material):
Extension holes in the middle of the plate to adjust the position of the plate. Plate can be placed on the ulnar and radial sides of the phalanx. Plates are anatomically precontoured of phalanx and have left and right types.
Distal radius locking plate
Distal radius locking plate:
The volar / dorsal distal radius combination provides a rich imagination space for doctors. Precontoured design adheres to bone surface to reduce tissue irritation. Round thin blunt edge design for minimally invasive insertion through the muscle.
Calcaneus variable locking plate
2.7mm Calcaneus variable locking plate (titanium alloy material):
Anatomically precontoured plates adhere to calcaneal protrusion, posterior articular talus and calcaneal tubercle. Countersinkable head design of screw reduces the possibility of screw head protruding plate surface.
Details Assembly View
Main Products
Company Profile
The company is a leading orthopedic medical device R & D, manufacturing and operation enterprise. Focus on the development, manufacturing and sales of orthopedic trauma, spine and bone joint implants and devices. The sales network covers the country and has sales offices in many regions. With first-class production equipment, professional R & D, technology and manufacturing team, quality management system in line with international standards and efficient marketing service strategy, the company has won the affirmation of many partners. With a number of senior R & D technical teams with many years of experience in orthopedic medical devices, the company has achieved unique breakthroughs in the field of orthopedic medical devices. It has always put the talent development strategy in the first place, continuously improved and built a professional innovation team with high quality and strong R & D capability. Adhering to the development concept of technological innovation, product innovation and service innovation, we gather and integrate advantageous resources, serve the great cause of human health, work hard and move forward bravely.
Production Facility
Quality Inspection
R&D Lab
Manufacturing Center
Why Choose Us
Why Choose Us Graphic
FAQ
Would you please give some information on shipping mode and charges?
Normally we send through courier like DHL, FEDEX, UPS, TNT etc or post upon request from clients.
Do you have ISO9001, ISO 13485, CE approvals?
Yes, our products are certified with ISO 9001, ISO 13485, and CE to ensure high quality compliance with international medical device standards.
What is the minimum order that we can place? Do you provide free samples?
We expect your minimum orders to be least at US$500. However, we understand that customers need to place smaller samples orders in the beginning in order to test market our products. We could offer the free samples, but do not pay the cost of freight.
Can I buy products not shown but similar to your catalogue?
Of course you can, just send us pictures or samples. But this takes a little longer time for delivery.
Do you have stock for listed products, or they are newly produced? What are your terms of payment?
Generally, we have stock for every listed products, which were produced monthly. But it depends on our sales condition. Better to ask our salesman for accurate inventory information. Payment<=800USD, 100% in advance. Payment>800USD, 30% T/T in advance, balance before shipment. Payment methods are via L/C, T/T, Western Union, PayPal etc.
What is the average lead time for bulk orders?
For items in stock, shipment can be arranged within 3-7 days. For custom or bulk production orders, the standard lead time is approximately 15-30 days depending on the specifications.
