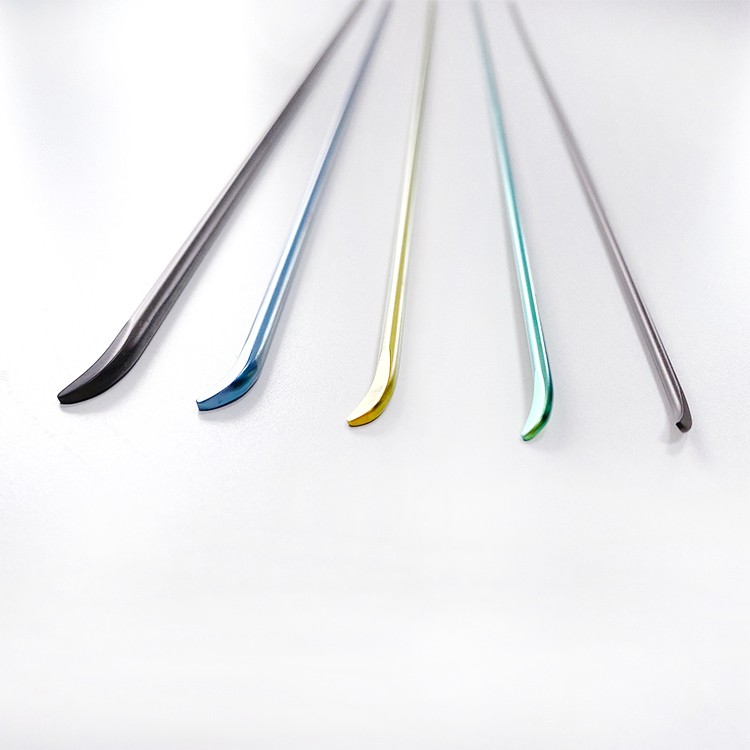

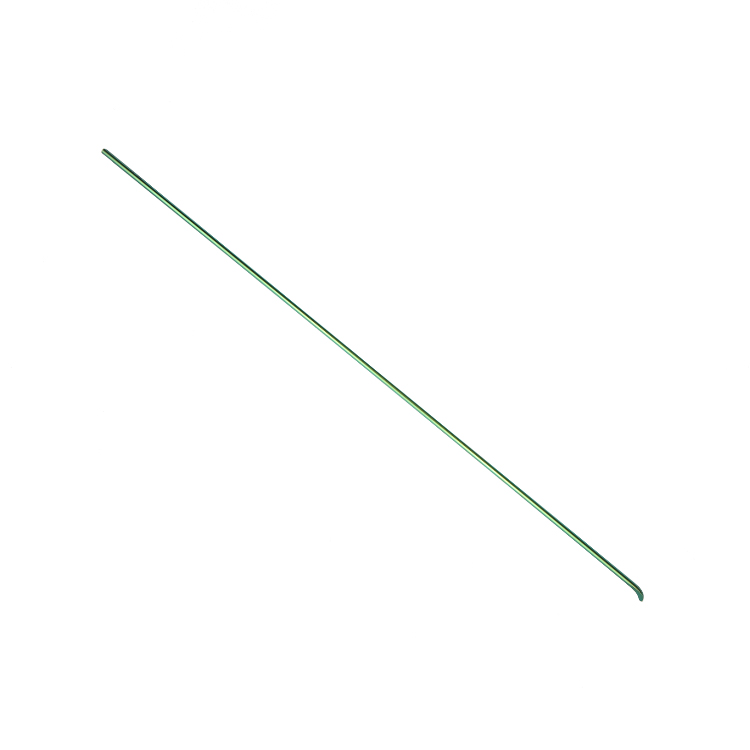

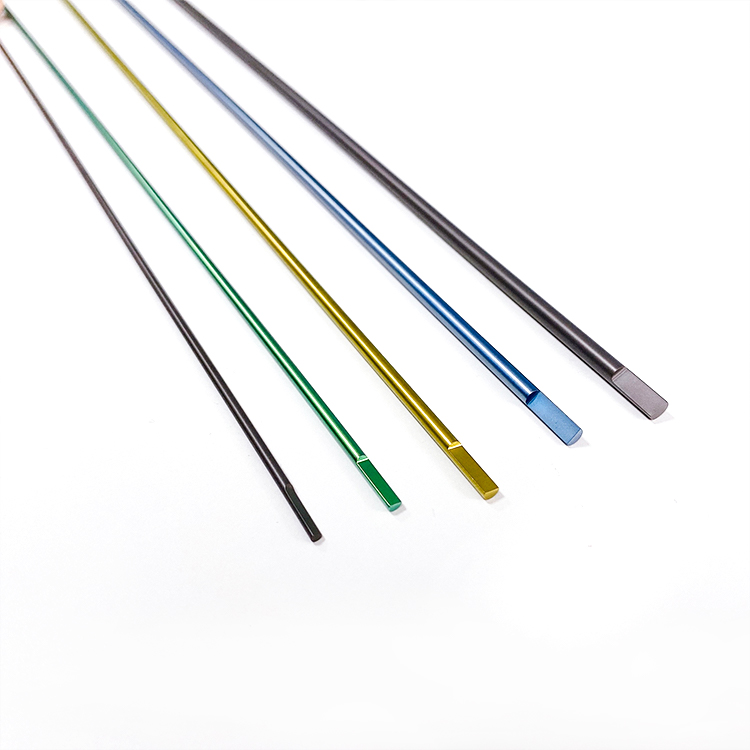

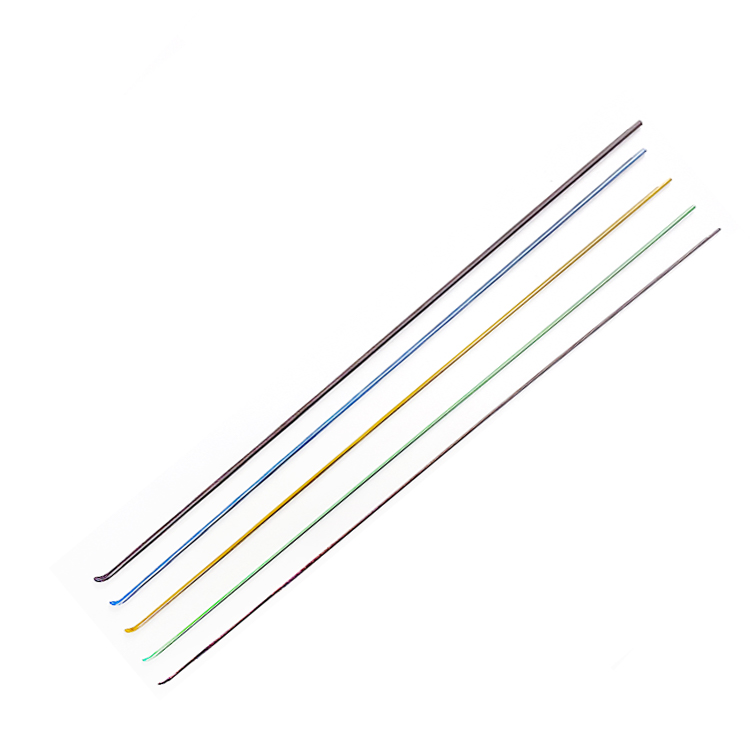

Intramedullary Nail: All kinds of high quality intramedullary nails. Easy to insert and take out; Titanium alloy material; Reduce the risk of outer wall impact and main nail inward movement; The diameter is suitable for all applications; Simple operation and minimally invasive implantation.
| Product name | Model | Material | Specification | Code |
|---|---|---|---|---|
| Elastic Nail Intramedullary Nail | SNXS | Titanium Alloy | 2.5×440 | 15902940 |
| Product name | Model | Specification | Material | Code |
|---|---|---|---|---|
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×170×130° | Titanium Alloy | 15649170 |
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×200×130° | Titanium Alloy | 15649200 |
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×240×130° | Titanium Alloy | 15649240 |
| Proximal Femoral Nail Antirotation End Cap | SGM-IIK | 10×15 | Titanium Alloy | 15601115 |
| Proximal Femoral Nail Antirotation End Cap | SGM-IIK | 10×20 | Titanium Alloy | 15601120 |
| Proximal Femoral Nail Antirotation Blade | SGM-IIK | 10.5×70 | Titanium Alloy | 15600570 |
| Proximal Femoral Nail Antirotation Blade | SGM-IIK | 10.5×80 | Titanium Alloy | 15600580 |
| Proximal Femoral Nail Antirotation φ4.9 locking screw | SGM-IIK | 4.9×30--72 | Titanium Alloy | 15604930 |
| Femoral Nail locking screw I | SGG-IIIK | 6.5×75 | Titanium Alloy | 15246575 |
| Femoral Nail Intramedullary Nail | SGG-IIIK | 9.0-13.0 | Titanium Alloy | 15249340 |
| Humeral nail Intramedullary Nail | SHG-IK | 8 | Titanium Alloy | 15728160 |
The length is consistent with the anatomy of the FEMORAL medullary cavity.
To further improve the fixation strength of osteoporosis. The Blunt End Design of the locking screw reduces the risk of excessive penetration.
Short nail: diameter of 8.0/ 9.5mm, length of 160mm. Long nail: diameter of 7.0/ 8.5mm, length of 180-315mm (15mm interval). All nails have left and right type, titanium alloy material. The diameter is suitable for all applications. Simple operation and minimally invasive implantation.
Multi-plane and Multi-locking screw fixation options, multiple options for operation, to achieve optimal fixation stability. Screw-in-screw design to further improve the fixation strength of osteoporosis. Blunt head of locking screw design to reduce the risk of excessive penetration. Locking screw countersinking design to reduce soft tissue irritation.
Short screw: two different plane holes for locking. Long screw: three locking holes avoid important blood vessels, located in the safe area between the median nerve and the radial nerve. Two anterior and posterior locking holes facilitate the manual operation, minimizing the occurrence of rotation and displacement of distal fracture.

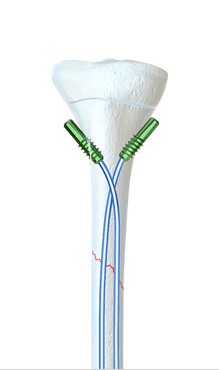

Nail diameter should be 30-40% of the narrowest transverse diameter of medullary cavity. Apply to 3mm/ 6-8 years old; 3.5mm/ 9-11 years old; 4.0mm/ 12-14 years old.
Special design of compression holes helps to increase the stability of transverse or short oblique fractures. Self-sustaining compression mechanism, no static screw is needed to maintain compression during operation.
Compared with G3 with radian radius of 1.5m, the distal location of TFNA with radian radius of 1.0m in the center of medullary cavity is twice as likely as that of G3.
We are a leading orthopedic medical device R & D, manufacturing and operation enterprise in China. We focus on the development, manufacturing and sales of orthopedic trauma, spine and bone joint implants and devices. The sales network covers the whole country and has sales offices in many regions. With first-class production equipment, professional R & D, technology and manufacturing team, quality management system in line with international standards and efficient marketing service strategy, we have won the affirmation of many partners. We have a number of senior R & D technical teams with many years of experience in orthopedic medical devices, making unique achievements in the field. We have always put the talent development strategy in the first place, continuously improved and built a professional innovation team with high quality and strong R & D ability. Adhering to the development concept of technological innovation, product innovation and service innovation, we gather and integrate advantageous resources, serve the great cause of human health, work hard and move forward bravely.
