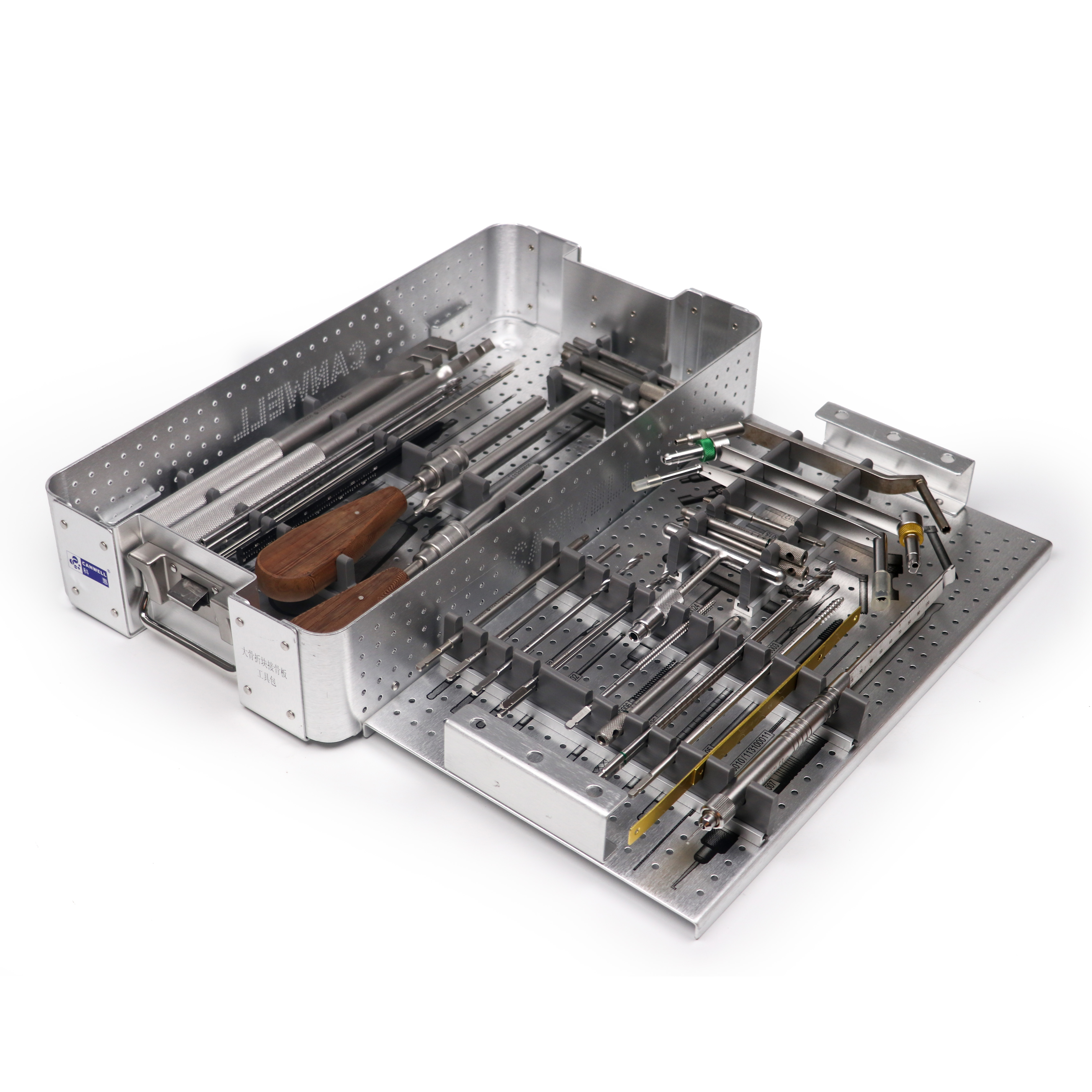

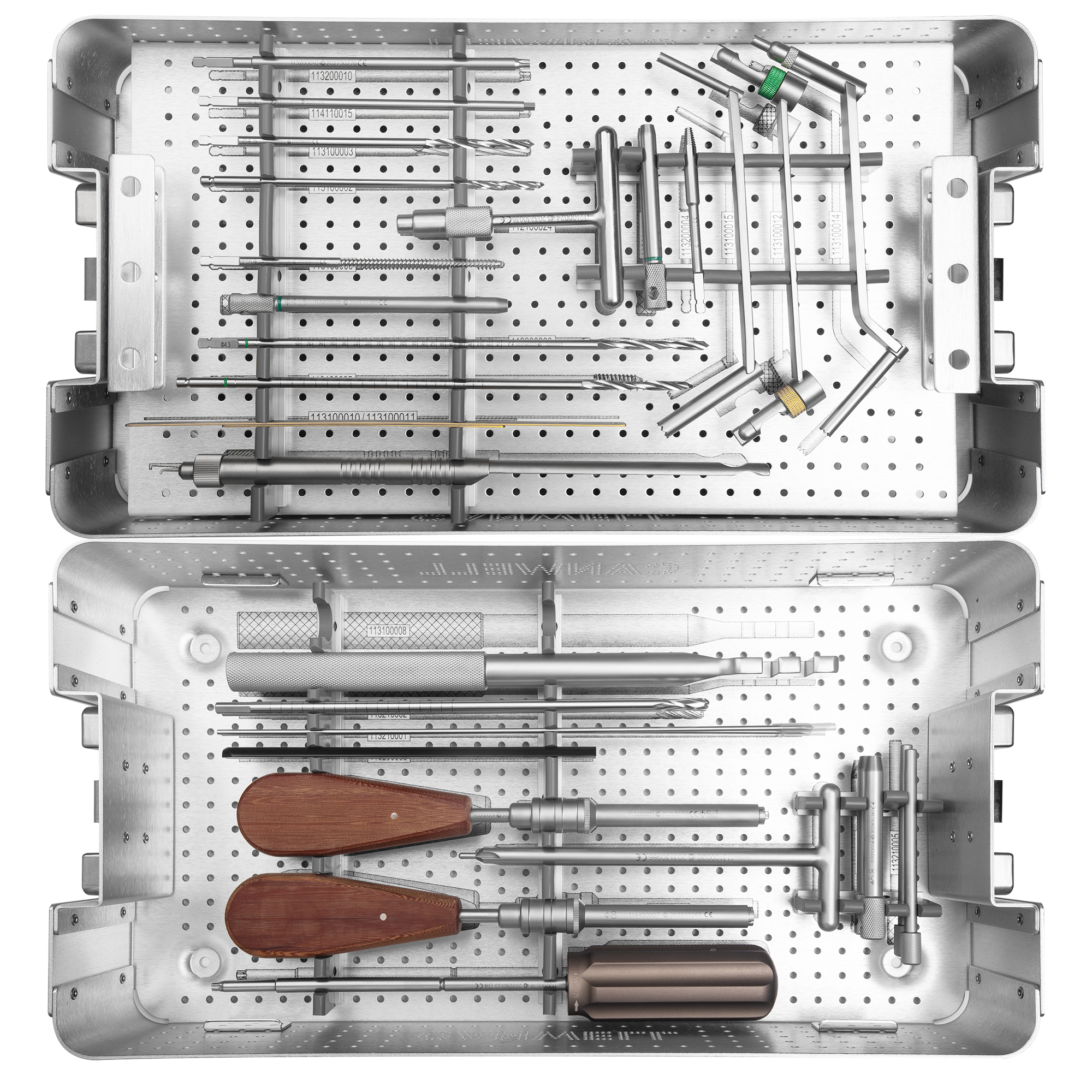

CANWELL Large Fragment Instrument Set Orthopedic 4.5-6.5mm Complete Set Locking Plate Instrument Set CE&ISO Certificated

The Locking Screw Concept

The locking screw concept was produced by Dr. Tepic S and Dr. Perren SM for the first time in 1995. With the locking compression plate put in use, it became one of the most important developments for plate and screw internal fixation in recent years. Locking screws provide the ability to create a fixed-angle construct while utilizing familiar conventional plating techniques.

The fixed-angle construct functions like an internal fixator which minimizes primary and secondary loss of reduction. This type of construct also provides improved fixation in osteopenic bone or multifragment fractures where traditional screw purchase is compromised. LCP constructs do not rely on plate-to-bone compression to maintain stability, meaning the periosteum is protected and the blood supply to the bone is preserved.

Product Specifications

Product Name	Hot Selling Surgical Instrument set of Large Fragment Locking Plating System Orthopedic Instruments
Material	Ti-6AL-4V material, with MRI compatibility
Color	Customized
Standard	ISO 13485 / ISO 9001 / CE
Brand	OEM Available
Screw	5.0mm/6.5mm Locking Screw
Used	Bone fracture
Indication	The LCP system applies to many different plate types and is therefore suitable for a large number of fracture types, including: Malunions and nonunions Osteotomies Fractures
Features & Benefits	The Combi-holes allow placement of conventional cortex and cancellous bone screw on one side or threaded locking screw on the opposite side of each hole. Periarticular Plates are pre-contoured to create an anatomical fit that requires little or no additional bending, minimizing impingement on soft tissues. Locking screw with stardrive recess. Locking screw with self-tapping flutes. The large core diameter improves bending and shear strength of the screw, distributing the load over a larger area in the bone. Special double lead thread beneath the screw head engages and locks into the threaded holes of the plate.

Product Details

Quality Qualifications

HD 60125623 0001

EN ISO 13485:2016

EN ISO 13485:2016

Manufacturing Capability

Founded in 1994, this medical device manufacturing company is now one of the major designers, manufacturers, and suppliers of orthopedic implants and instruments. Featuring a workshop facility of over 60,000 square meters, the company operates as a long-term instrument contract manufacturer for top global orthopedic companies. The comprehensive product lines include traumatology, spinal fixation systems, and surgical instruments, covering products such as femoral nails, titanium plates and screws, pedicle screws with rods, PEEK cages, balloon kyphoplasty for spine fractures, and other instrument sets distributed worldwide.

Showroom Overview

Additional Product Series

Frequently Asked Questions

Would you please give some information on shipping mode and charges?

Normally we send through courier, or post upon request from clients. Shipping costs depend on the volume and destination of the order.

Do you have ISO 9001 and CE certifications?

Yes, we are an ISO 9001 and EN ISO 13485 Certified Company. We have CE mark certifications for a wide range of our orthopedic implants and instruments.

What is the minimum order that we can place?

We expect our minimum orders to be at least US$1000. However, we understand that customers may need to place smaller sample orders at the beginning to test our products in their market. Sample options are available upon request.

Can I buy products not shown but similar to your catalogue?

Yes, you can. Simply send us pictures or physical samples, and we can discuss manufacturing options. Please note that custom requests may require a slightly longer time for delivery.

Do you have stock for listed products, or are they newly produced?

Generally, we keep stock for catalog products, which are replenished on a monthly basis. However, availability depends on current sales volume. We recommend contacting our sales representatives for up-to-date inventory details.

What materials are used for the locking plate and screw system?

The locking plating system is made from high-grade Ti-6AL-4V titanium material, ensuring excellent biocompatibility, strength, and complete MRI compatibility.
