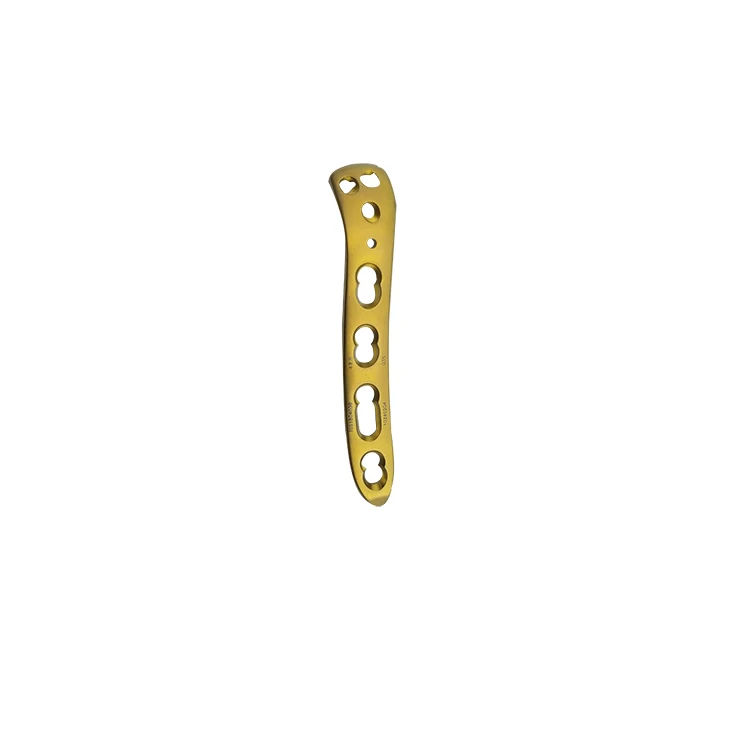

Arcuate Line Pectineal Locking Plate Pubic Bone Implant & Interventional Material with Arch Bone Plate Design

Product Description

Orthopedic Locking Plate Showcase
Orthopedic Locking Plate Detail

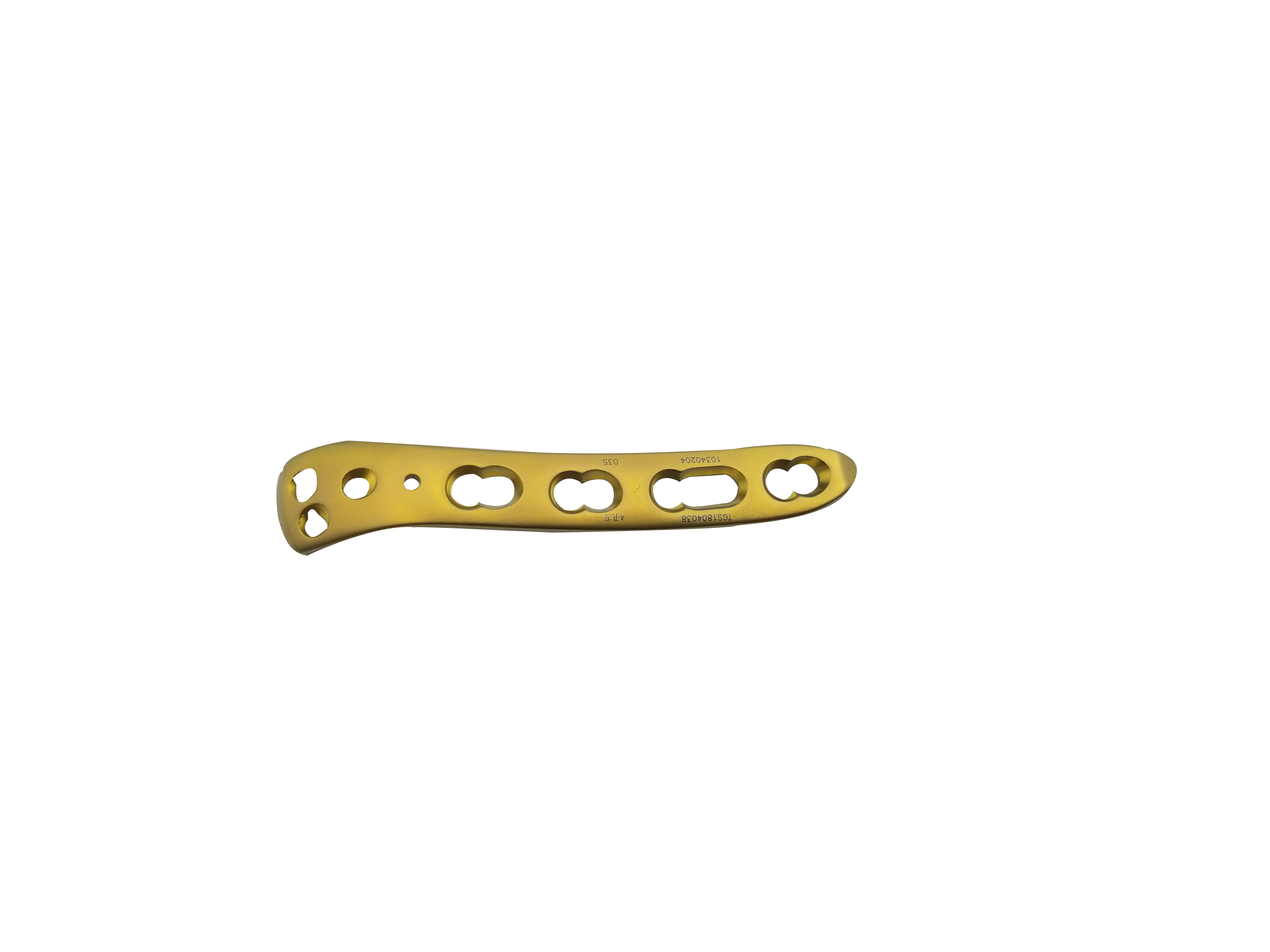

Product Diagram
Product name Model Specification Material Fit
Lateral locking plate for the distal humerus JPSD13 4--16 hole Titanium Alloy 3.5mm locking screw, 2.7mm locking screw, 3.5mm cortical bone screw, and 4.0mm cancellous bone screw
Code Direction Specification Length
10340203Left366mm
10340303Right366mm
10340204Left479mm
10340304Right479mm
10340205Left592mm
10340305Right592mm
10340206Left6105mm
10340306Right6105mm
10340207Left7118mm
10340307Right7118mm
10340208Left8131mm
10340308Right8131mm
10340209Left9144mm
10340309Right9144mm
10340210Left10157mm
10340310Right10157mm
10340211Left11170mm
10340311Right11170mm
Product name Model Specification Material Code 5--20 20 & Above
Reconstruction Locking Plate ZXSD02 6 hole Titanium Alloy 10010006 57.95 54.9
Narrow Dynamic Locking Plate II ZXSD05 6--14 hole Titanium Alloy 10040406 54.15 51.3
Humeral compression locking plate JPSD13 4--16 hole Titanium Alloy 10350203 57.95 54.9
Clavicular Hook Locking Plate JPSD09 4--8 hole Titanium Alloy 10300204 56.05 53.1
Clavicular Hook Locking Plate II JPSD90 4--10 hole Titanium Alloy 10300204 57 54
Reconstruction Clavicular Locking Plate IV JPSD94 7-9 hole Titanium Alloy 11150207 76 72
Proximal humeral locking plate JPSD33 3--14 hole Titanium Alloy 10540203 58.9 55.8
Obique T- Locking Plate JPSD07 3 hole Titanium Alloy 10280203 58.9 55.8
Distal lateral humeral locking plate JPSD13 3--11 hole Titanium Alloy 10280203 68.5 64.8
Proximal ulnar locking plate JPSD15 3--12 hole Titanium Alloy 10360203 71.25 67.5
Distal radial locking plate II JPSD78 3--8 hole Titanium Alloy 10990203 40.85 38.7
First metatarsophalangeal joint fusion variable locking plate
2.4/ 2.7mm First metatarsophalangeal joint fusion variable locking plate (titanium alloy material)
3 different dorsiflexion angles, 0/ 5/ 10 respectively, are suitable for different joints. Reliable Kirschner wire compression holes and slots in the middle of plate. Etching lines on the plate indicate the correct fusion position.
Medial-lateral distal humeral locking plate
Medial-lateral distal humeral locking plate
Plates are anatomically precontoured. With countersinkable head design of 2.7mm screw to reduce tissue irritation. 5 types of medial-lateral distal humeral locking plates allow doctors to determine fracture fixation schemes according to the condition.
Phalanx variable locking plate
1.3/ 1.5mm Phalanx variable locking plate (titanium alloy material)
Extension holes in the middle of the plate to adjust the position of the plate. Plate can be placed on the ulnar and radial sides of the phalanx. Plates are anatomically precontoured of phalanx and have left and right types.
Distal radius locking plate
Distal radius locking plate
The volar / dorsal distal radius combination provides a rich imagination space for doctors. Precontoured design adheres to bone surface to reduce tissue irritation. Round thin blunt edge design for minimally invasive insertion through the muscle.
Calcaneus variable locking plate
2.7mm Calcaneus variable locking plate (titanium alloy material)
Anatomically precontoured plates adhere to calcaneal protrusion, posterior articular talus and calcaneal tubercle. Countersinkable head design of screw reduces the possibility of screw head protruding plate surface.
Orthopedic Medical Devices
Orthopedic Implants Showcase
Intramedullary Nails Showcase
Manufacturing Gallery
Manufacturing Facility 1
Manufacturing Facility 2
Manufacturing Facility 3
Frequently Asked Questions
Q1: Would you please give some information on shipping mode and charges?
Normally we send through courier like DHL, FEDEX, UPS, TNT etc or post upon request from clients.
Q2: Do you have ISO9001, ISO 13485, and CE approvals?
Yes, our orthopedic products are manufactured under strict compliance with ISO9001 and ISO 13485 quality management standards and carry relevant international certifications.
Q3: What is the minimum order that we can place?
We expect your minimum orders to be at least US$500. However, we understand that customers need to place smaller sample orders in the beginning in order to test market our products.
Q4: Do you provide free samples?
We can offer free samples for testing, but the customer is responsible for paying the cost of the freight.
Q5: Can I buy products not shown but similar to your catalogue?
Of course you can, just send us pictures or samples. Please note that custom or non-standard items may require a slightly longer delivery time.
Q6: Do you have stock for listed products, and what are your payment terms?
Generally, we maintain stock for listed products, produced monthly, depending on sales. Payment under 800 USD requires 100% in advance. For orders over 800 USD, 30% T/T in advance is required, with the balance due before shipment. We accept L/C, T/T, Western Union, PayPal, etc.
