Synoviq Medical
1 / 5
| Item | Value |
|---|---|

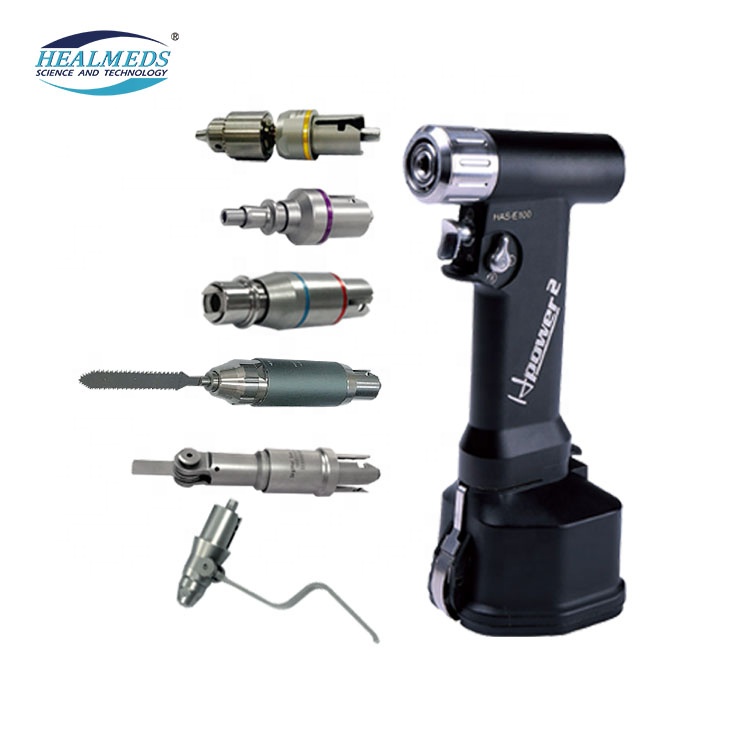

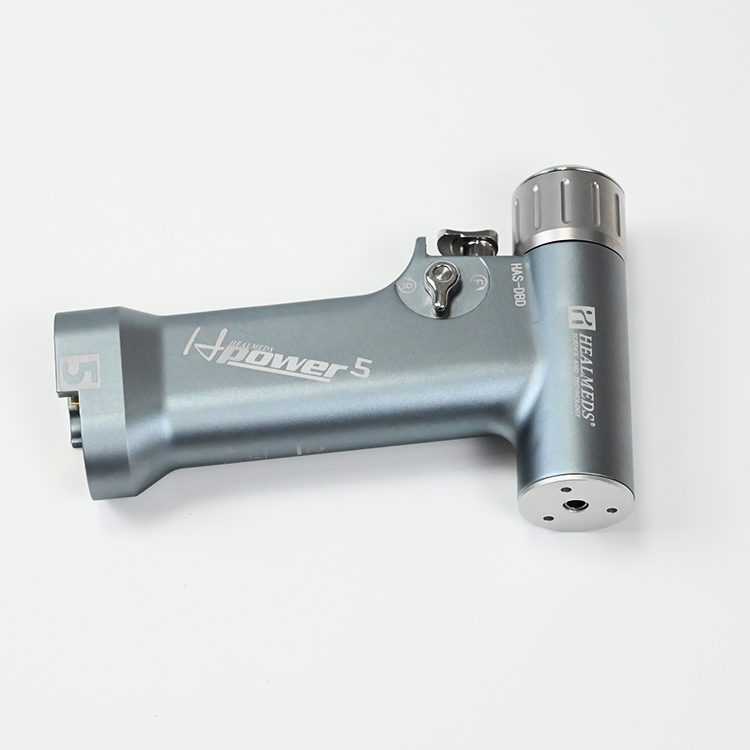

| Multi-Function Handpiece | Equipped with brushless DC canulated motor imported from USA |

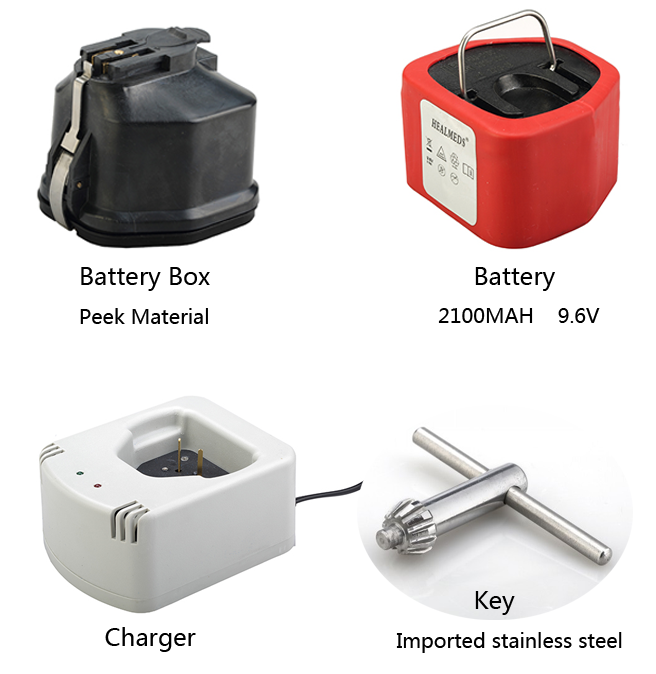

| Battery | Ni-MH with longer service-life, High capacity: 2100MAH, Voltage: 9.6V |
| Battery Box | Peek material: sterilized more than 3000 times |
| Charger | More convenient design to guarantee the battery life |
| Transfer Shield | Imported stainless steel 304 |

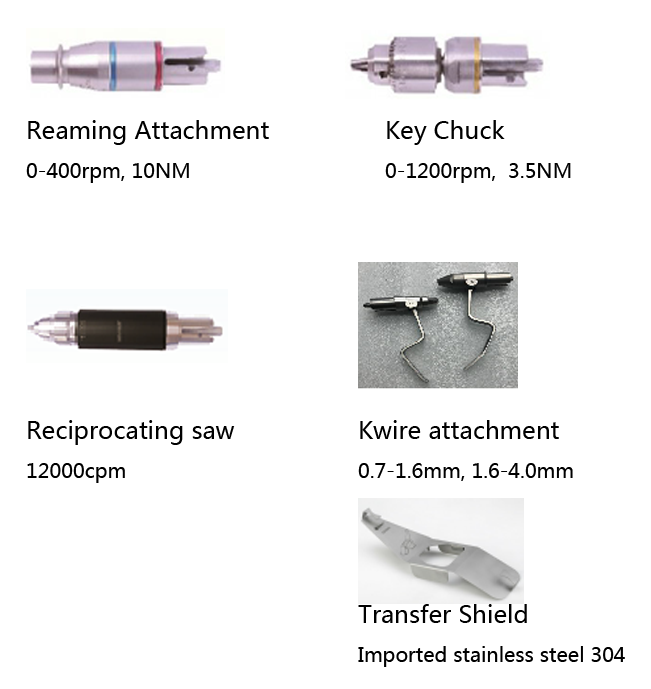

| Key Chuck | Speed Range 0-1200rpm, Torque 3.5NM |
| Reaming Attachment | Speed Range 0-400rpm, Torque 10NM |
| K-wire Attachment | 0.7-1.6mm / 1.6-4.0mm |
| Reciprocating Saw | Frequency: 0-12000cpm |
| Sterilizing Box | 445*275*215mm, 4.6Kg |
The warranty for the whole machine and motor is 2 years. For the battery and other fast-consumable parts, the warranty is 3 months.
No, the battery pack cannot be sterilized and is not autoclavable. It must be handled with appropriate sterile transfer shields during surgical procedures.
The standard sterilizing temperature should not exceed 135 °C. For the improved version, it can handle up to 155 °C. Exceeding these temperatures will cause damage to the motor.
The battery must be removed from the power tool handpiece immediately after the operation. Leaving it inside will cause automatic discharge, reducing the overall lifespan of the battery.

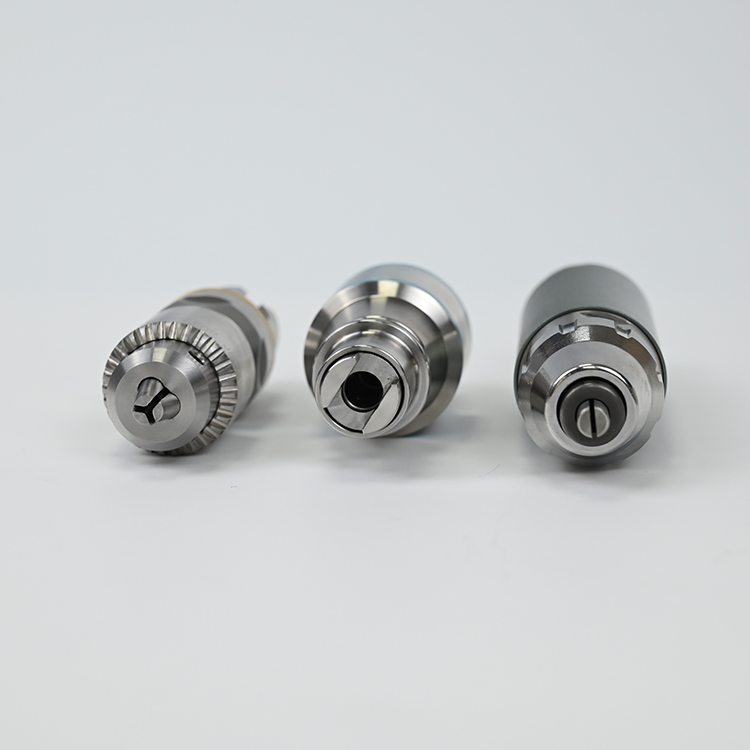

The key chuck attachment runs at a speed range of 0-1200rpm (torque 3.5NM), while the reaming attachment operates at 0-400rpm (torque 10NM) to provide high-torque power.

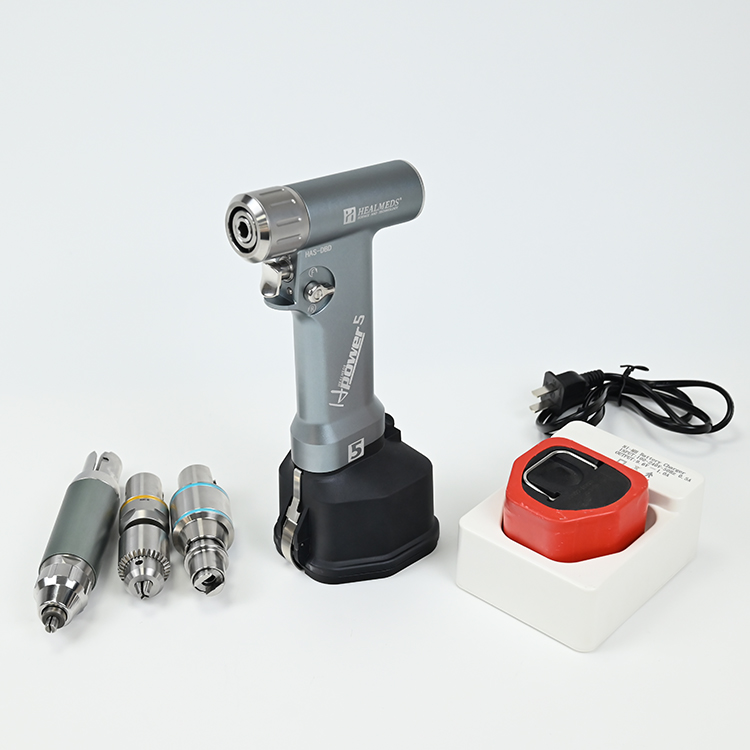

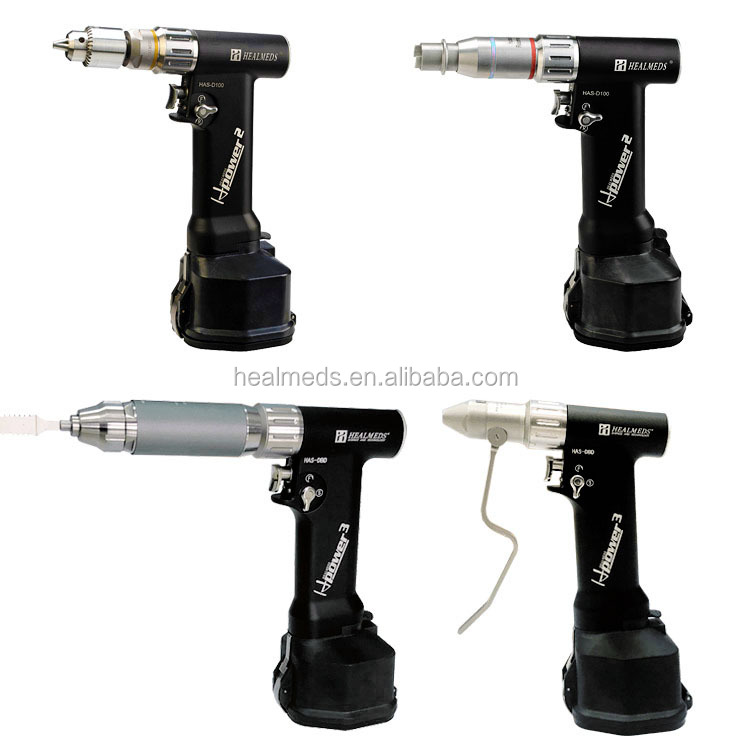

The standard kit includes one handpiece, one battery, one charger, one key chuck or reaming attachment, one sterilization channel, and one protective aluminum alloy case.
