| Parameter | Data |
|---|---|
| Speed | 0-1200rpm |
| Torque | 2.9N.m |
| No-load Noise | ≤45dB |
| Operation(V) voltage | 7.2V |
| Sterilization temperature | 155° |
| Radial circle run-out | ≤0.1mm |
| Axial Movement | ≤0.5mm |
| Chuck gripper diameter | ≤4mm |
| Oscillations | 0-16000cpm |
| Battery Capacity | 1400mAh |

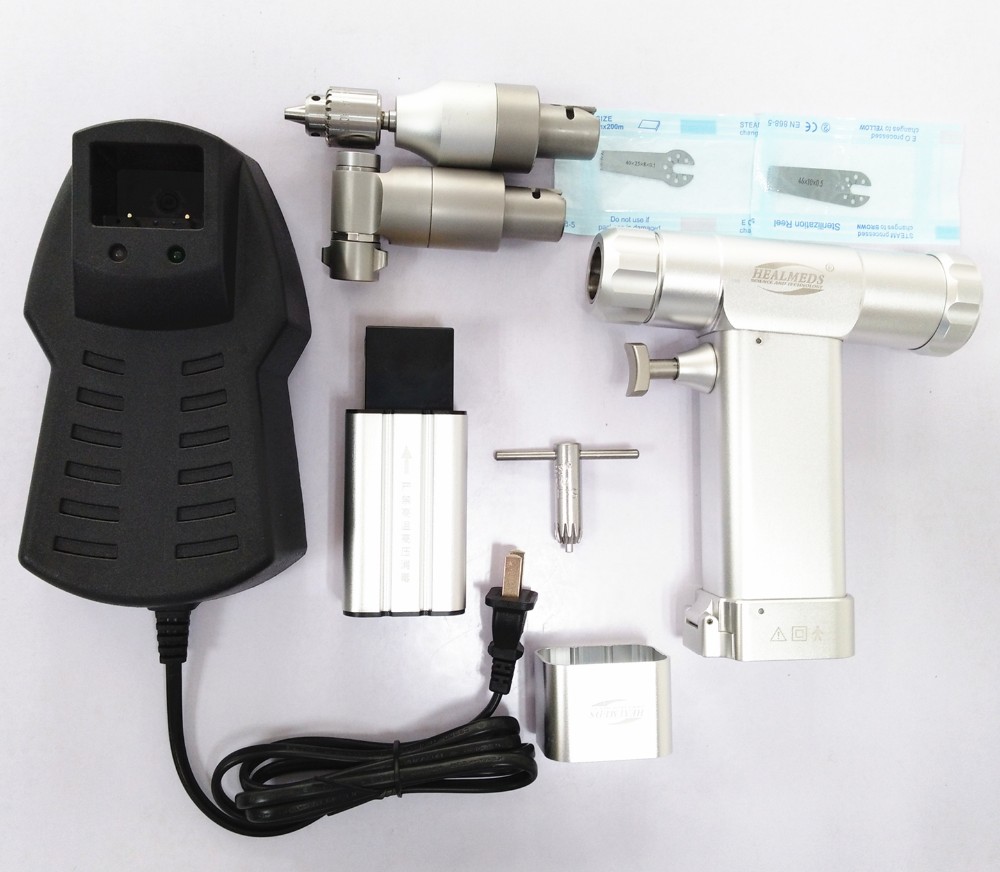

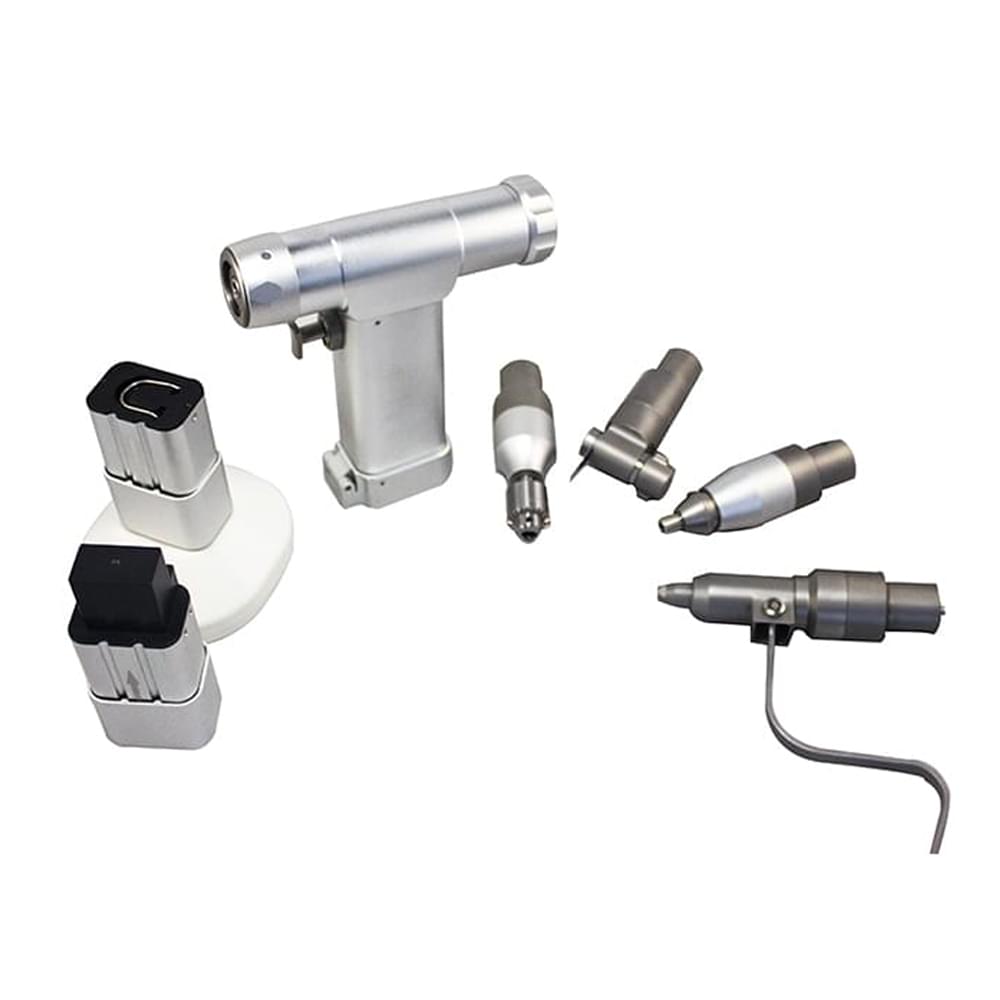

| No. | Accessory | Qty. | Note |
|---|---|---|---|

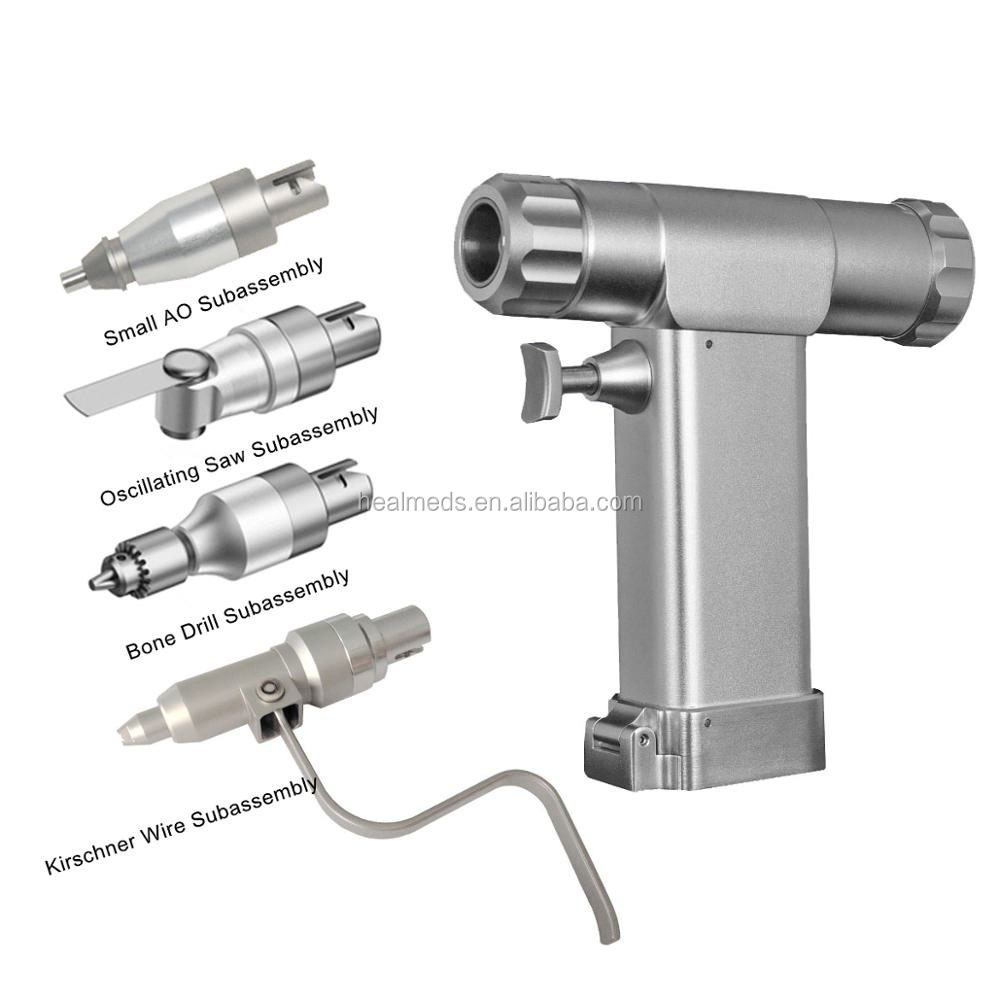

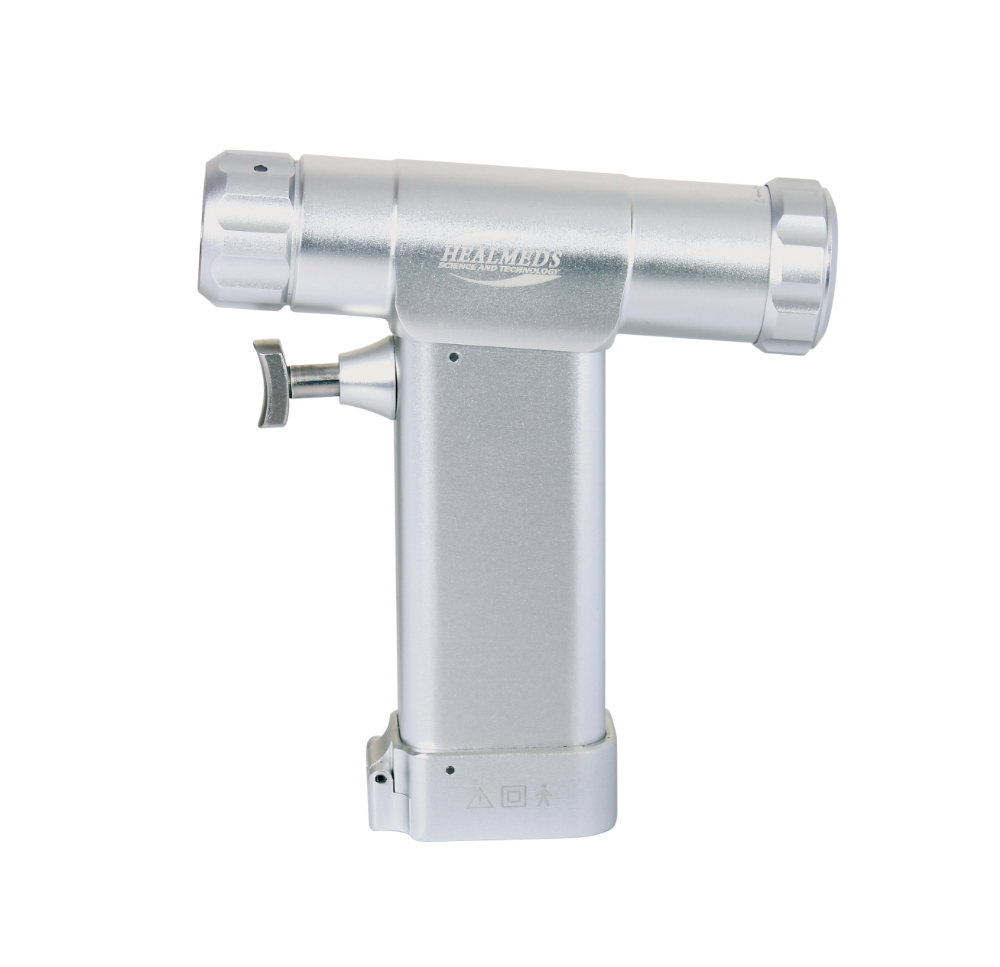

| 1 | Handpiece | 1 | 1.02kg, can be connected with several adapters, autoclavable up to 135°C |

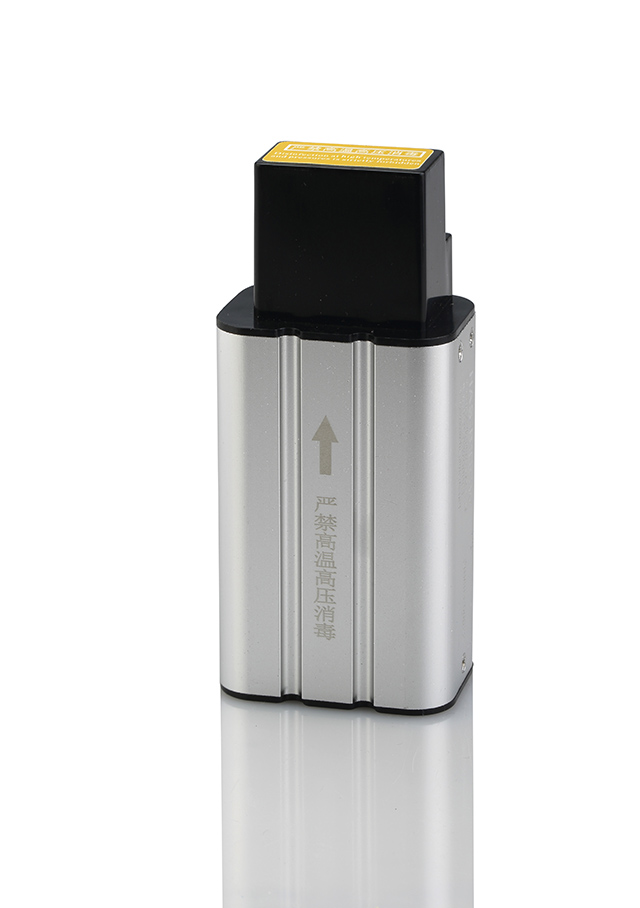

| 2 | Battery | 2 | could not be sterilized, could last for 30 minutes after fully charged |
| 3 | Charger | 1 | 110-220V, match both European & American type |

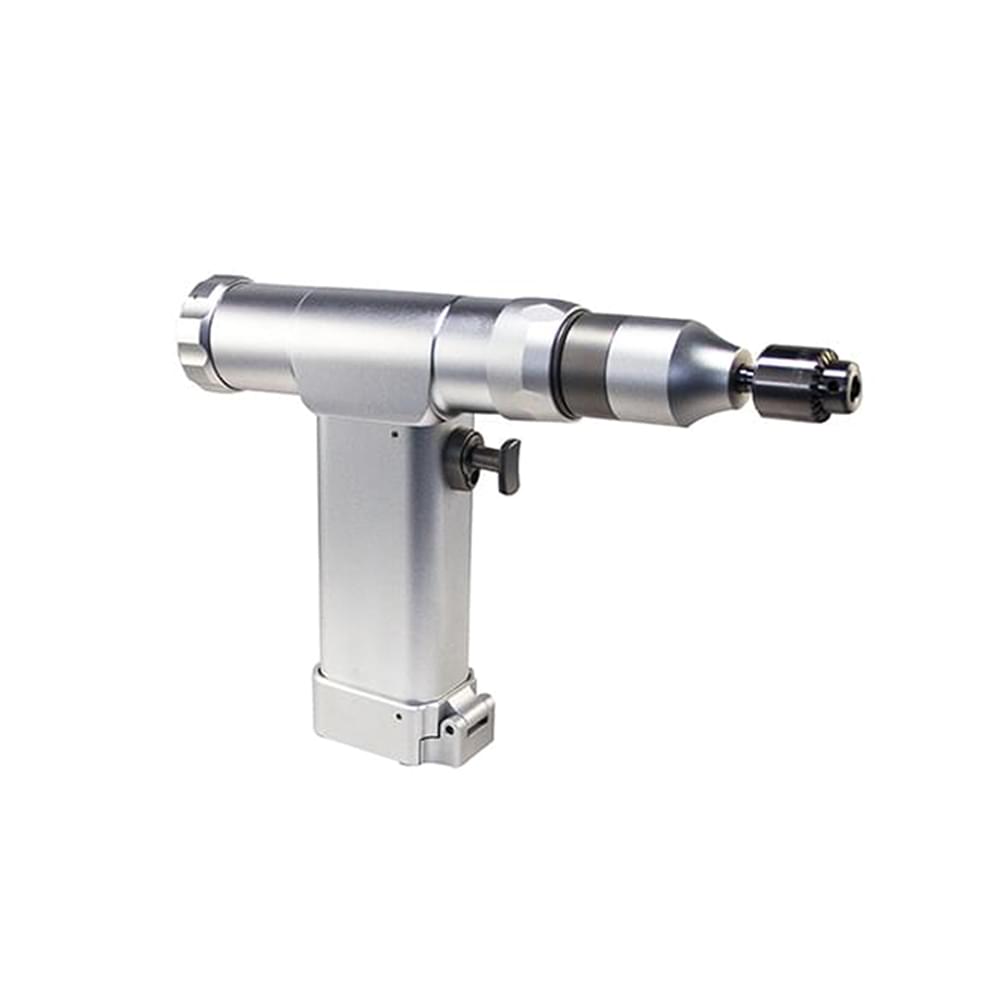

| 4 | Drill chuck | 1 | imported, high Coaxiality, suitable for trauma surgeries |

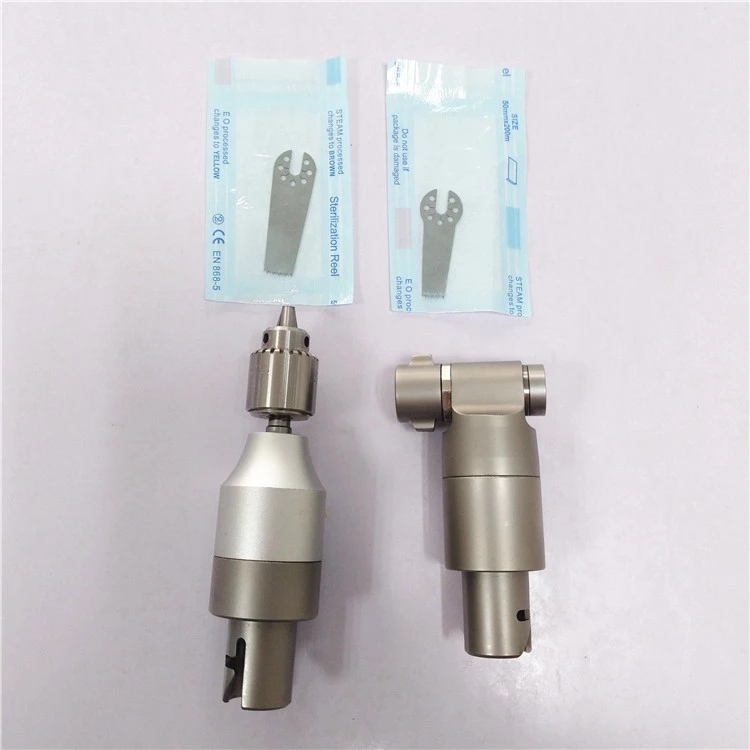

| 5 | Oscillating Saw | 1 | used for joint surgeries |
| 6 | Blade | 2 | 7 stars blades with optional sizes |
| 7 | Small AO | 1 | trauma surgery for AO Type, it's for drilling holes and fixing the plates |
| 8 | K-Wire | 1 | Holding K-wire very conveniently |
| 9 | Sterilizing channel | 1 | could be sterilized |
| 10 | Aluminum case | 1 | 445*270*150mm, Weight: 6kg |
The standard sterilization temperature should not exceed 135°C (up to 155°C for the improved type). Exceeding these limits can permanently damage the internal motor.
No, the battery is not autoclavable and cannot be sterilized. Please ensure the battery is removed from the tool prior to any sterilization processes.
A fully charged battery provides up to 30 minutes of continuous runtime. Always remove the battery from the handpiece after surgical operations to prevent self-discharge, which degrades battery lifespan.
We offer a 1-year warranty for the complete machine body, a 2-year warranty for the motor drive system, and a 3-month warranty coverage for the batteries and other high-wear consumable components.
The cranial bur must be flushed immediately post-surgery with a purger to prevent blood from sticking. Blades are constructed of flexible medical-grade stainless steel and are designed for single-use (1 surgery per blade) to ensure surgical precision.
