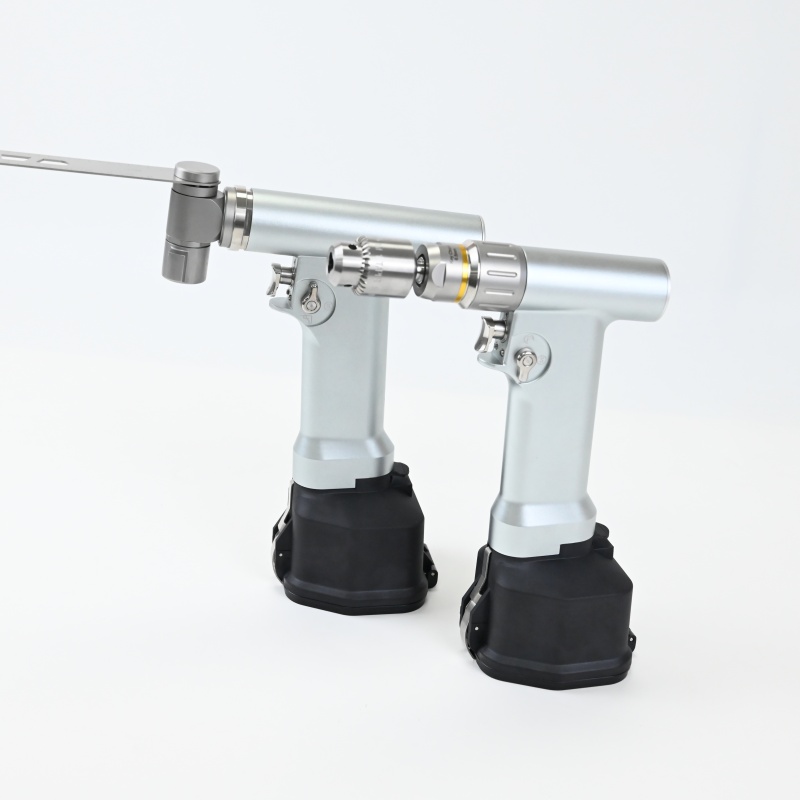

Based on the Conmed, our E100 Bone Saw includes a wide range of heavy-duty drills and saws. The battery and performance are the same as the Conmed, with dual-speed control for multiple cutting options. The reciprocating saw is compact and has excellent ergonomics. It cuts faster and harder. The rotating handle allows for high-speed drilling and high-torque reaming. It utilizes innovative motor technology to provide less vibration and better handle control. There are single and dual trigger options as well as reaming and drilling attachments. It also comes with a modular sterilization container and batteries.
Technical Specifications & Performance
Speed Range (Key Chuck): 0-1200rpm
Torque (Key Chuck): 3.5N-m
Speed Range (Reaming): 0-400rpm
Torque (Reaming): 10N-m
All copper thick wall chuck, very durable, high concentricity, stable speed, spindle clamping, easy and quick to change drill bits.
Tail power switch design, smooth operation, beautiful and does not affect the use.
Micro motor, full copper core wire movement, low noise, high power, high stability, easy to store.
Frosted texture process on the surface of the body, effectively prevent slippage, comfortable to hold, not tired of long time use.
Details
Specification
Item
Value

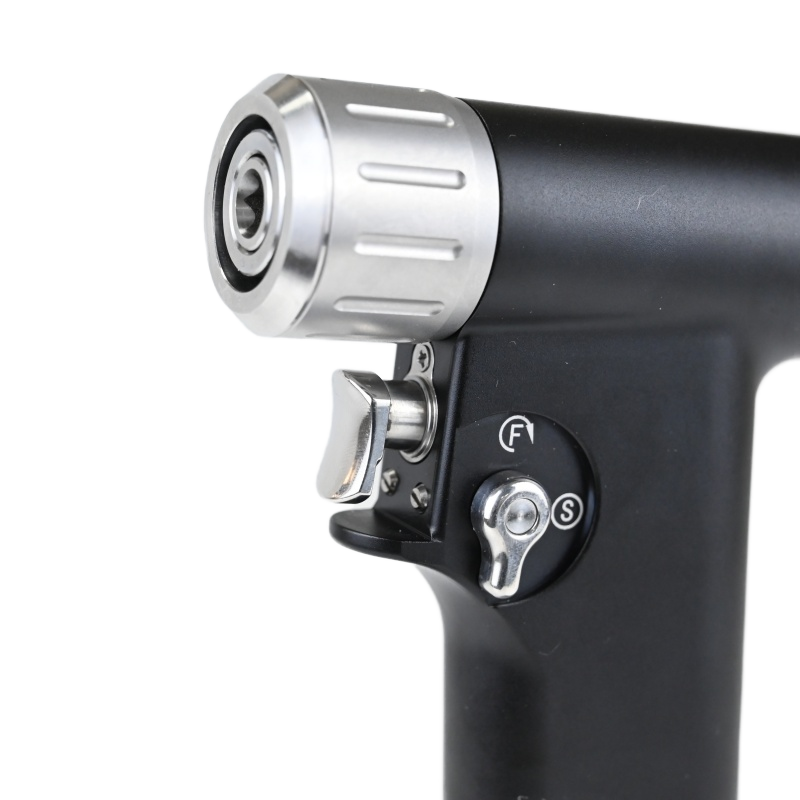

Multi-Function Handpiece
Equipped with brushless DC canulated motor imported from USA

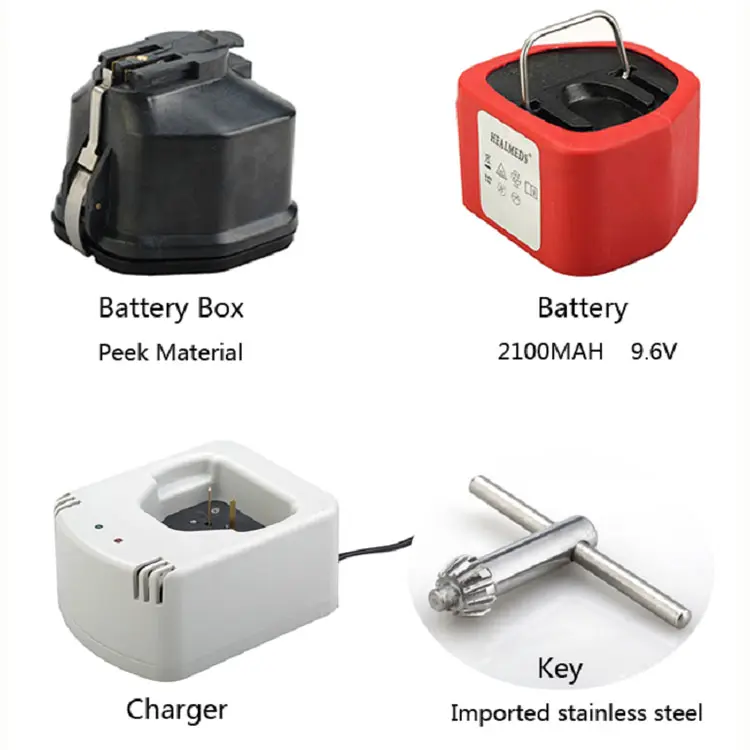

Battery
Ni-MH with Longer service-life, High capacity: 2100MAH Voltage: 9.6V

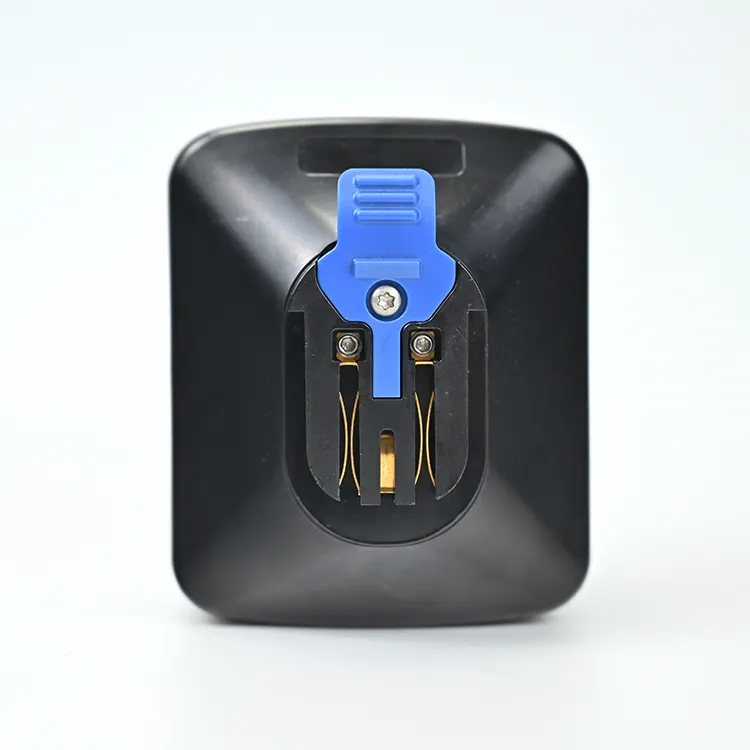

Battery Box
Peek material: sterilized more than 3000 times
Charger
More convenient design to guarantee the battery life
Transfer Shield
Imported stainless steel 304
Key Chuck
Speed Range 0-1200rpm, Torque 3.5NM
Reaming Attachment
Speed Range 0-400rpm, Torque 10NM
K-wire Attachment
0.7-1.6mm / 1.6-4.0mm
Reciprocating Saw
Frequency: 0-12000cpm
Sterilizing Box
445*275*215mm, 4.6Kg
Payment & Delivery
Our Advantages
FAQ
What components are included in the E100 system?

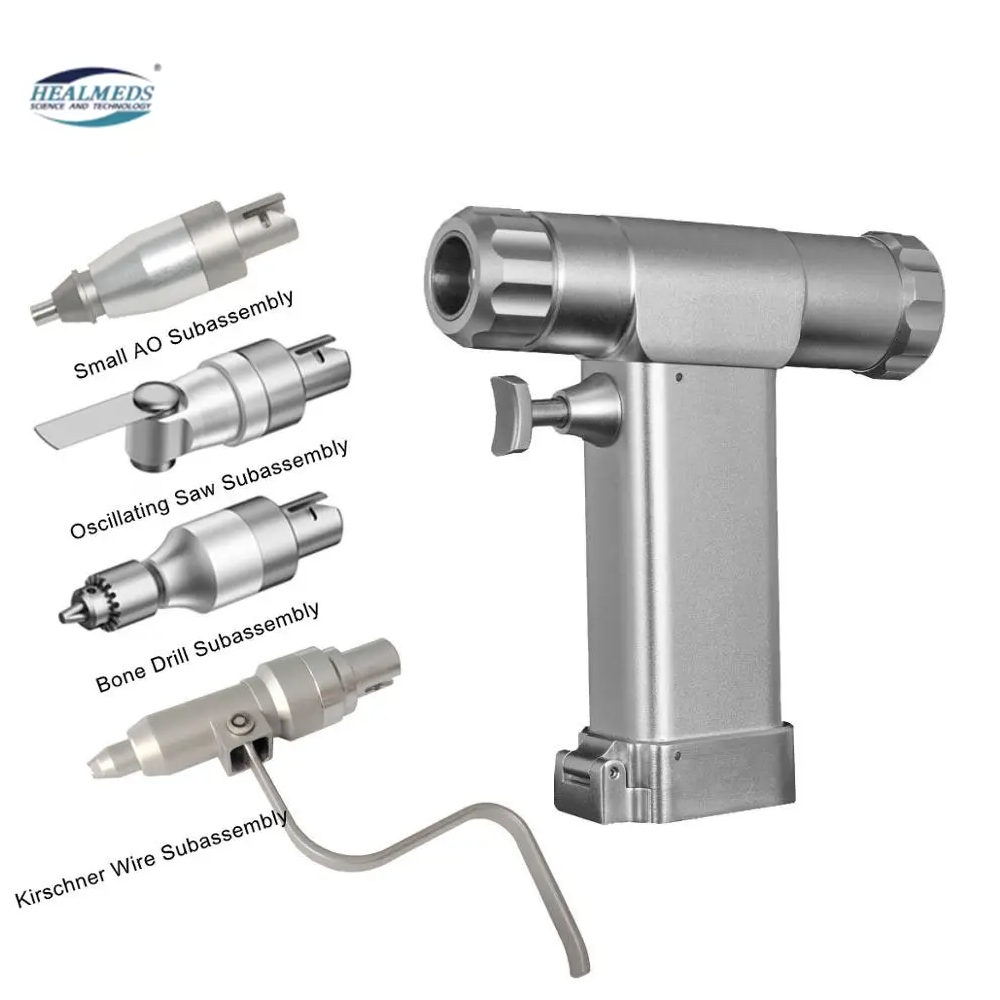

The system comes with the multi-function handpiece, various attachments (such as Key Chuck, Reaming, K-wire, and Reciprocating Saw), high-capacity batteries, a dedicated charger, and a modular sterilizing container.
Can the battery box and handpiece be sterilized?
Yes, the battery box is made of highly durable PEEK material which can be autoclaved and sterilized more than 3,000 times. The transfer shield is also made of premium imported stainless steel 304.
What are the speed and torque specifications for drilling and reaming?
The key chuck attachment for drilling operates at a speed range of 0-1200rpm with 3.5N-m of torque. The reaming attachment operates at 0-400rpm with a higher torque of 10N-m for heavy-duty requirements.
What makes the motor design superior?
The handpiece utilizes a premium brushless DC canulated motor imported from the USA, which features a full copper core wire movement ensuring low noise, high stability, less vibration, and longer operational life.
Is this system compatible with other surgical accessories?
Yes, the modular design incorporates dual-speed control options along with single and dual trigger choices, making it highly versatile for multiple orthopedic drilling and sawing procedures.
