Conmed Stryker Medical Orthopedic Drilling Electric Orthopedic Drill for Orthopaedic Power Tools

Send Inquiry

Product Description

E100 Multifunction Drill

Mini Multi Function Bone Drill Machine

Features

✓ Speed Range (Key Chuck): 0-1200rpm

✓ Torque (Key Chuck): 3.5N-m

✓ Speed Range (Reaming): 0-400rpm

✓ Torque (Reaming): 10N-m

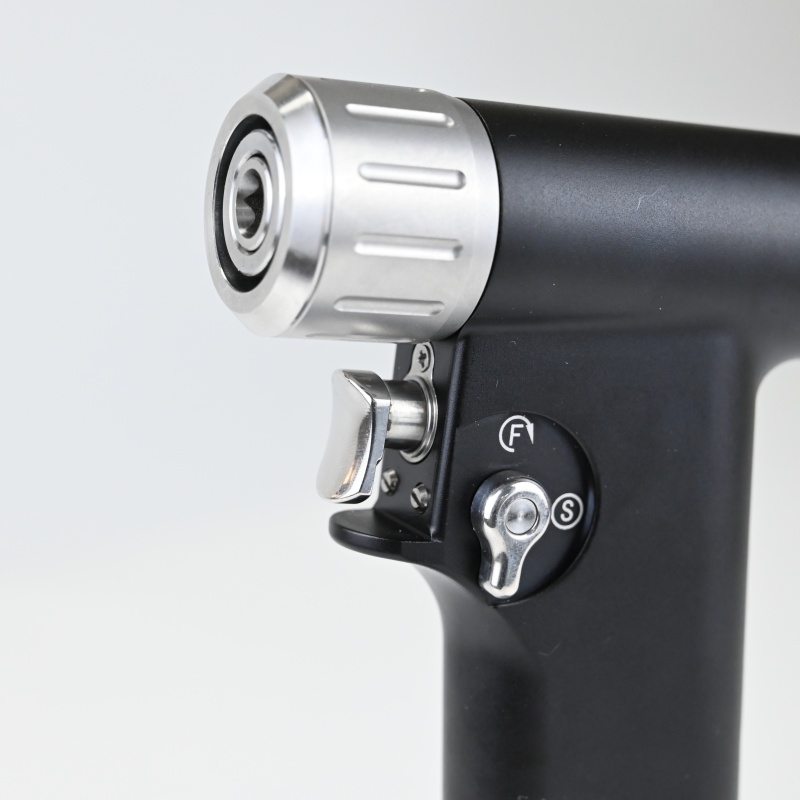

All copper thick wall chuck, very durable, high concentricity, stable speed, spindle clamping, easy and quick to change drill bits. Tail power switch design, smooth operation, beautiful and does not affect the use. Micro motor, full copper core wire movement, low noise, high power, high stability, easy to store. Frosted texture process on the surface of the body, effectively prevent slippage, comfortable to hold, not tired of long time use.

Details

Specification

Item	Value

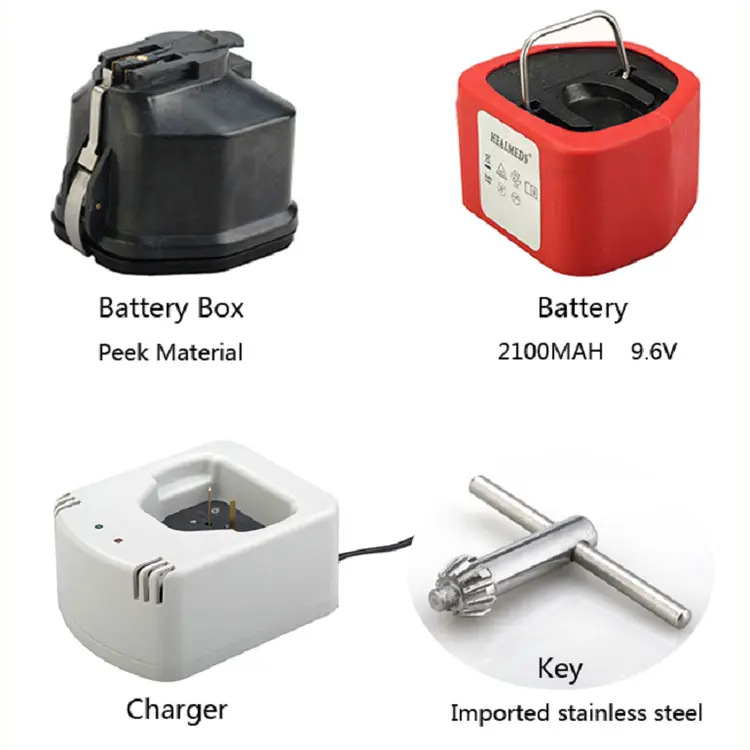

Multi-Function Handpiece	Equipped with brushless DC canulated motor imported from USA
Battery	Ni-MH with Longer service-life, High capacity:2100MAH Voltage: 9.6V
Battery Box	Peek material: sterilized more than 3000 times
Charger	More convenient design to guarantee the battery life
Transfer Shield	Imported stainless steel 304
Key Chuck	Speed Range 0-1200rpm, Torque 3.5NM
Reaming Attachment	Speed Range 0-400rpm, Torque 10NM
K-wire Attachment	0.7-1.6mm/1.6-4.0mm

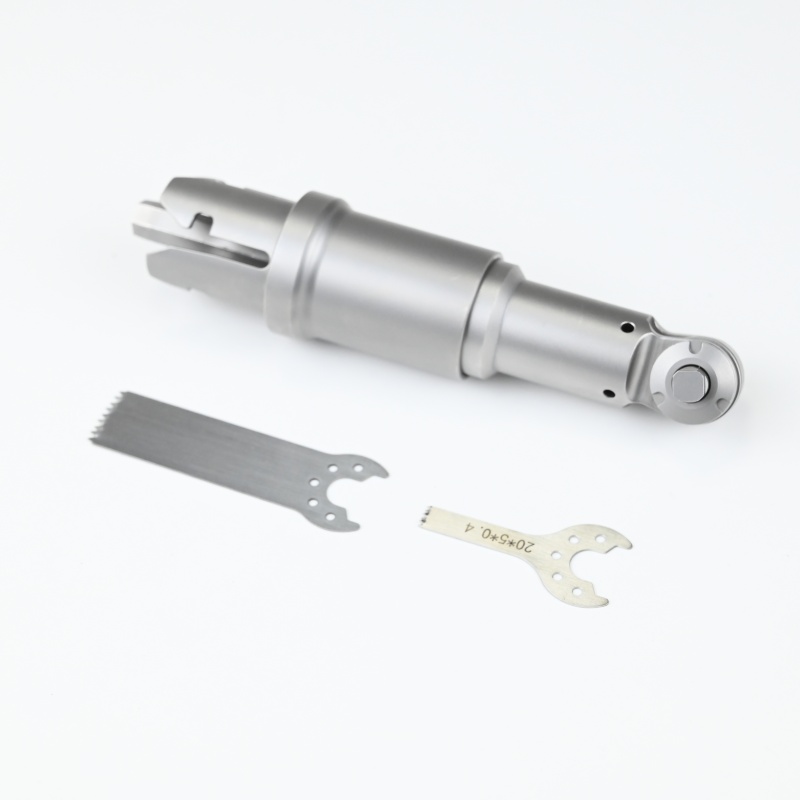

Reciprocating Saw	Frequency: 0-12000cpm
Sterilizing box	445275215mm, 4.6Kg

Payment & Delivery

Our Advantages

FAQ

Q1: What is the advantage of the brushless DC motor in the E100 handpiece?

The handpiece is equipped with a brushless DC motor imported from the USA, which offers longer service life, lower noise, higher torque stability, and more efficient power output compared to traditional brushed motors.

Q2: How durable is the battery box and can it be autoclaved?

Yes, the battery box is made of high-grade PEEK material, designed to withstand the autoclave sterilization process, and can be sterilized more than 3000 times without degrading.

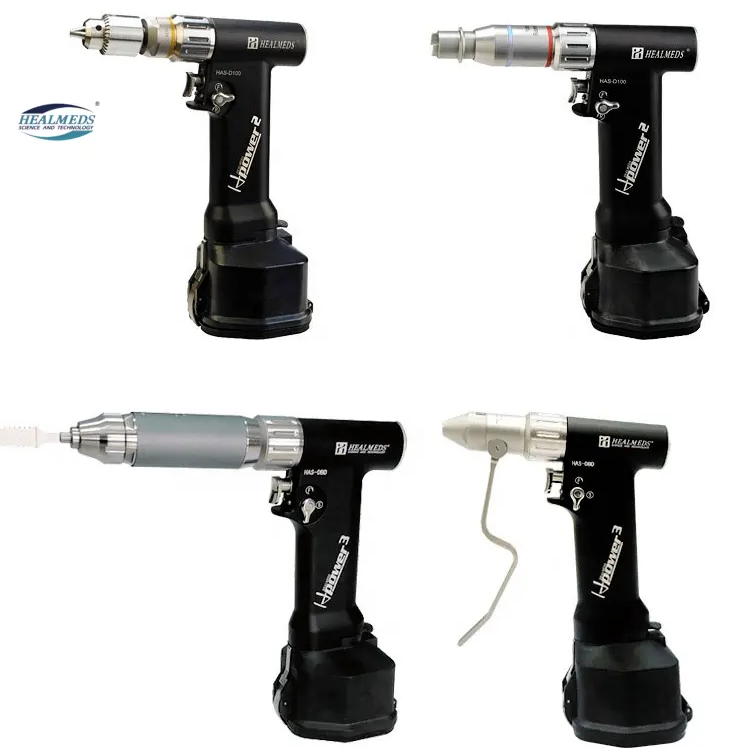

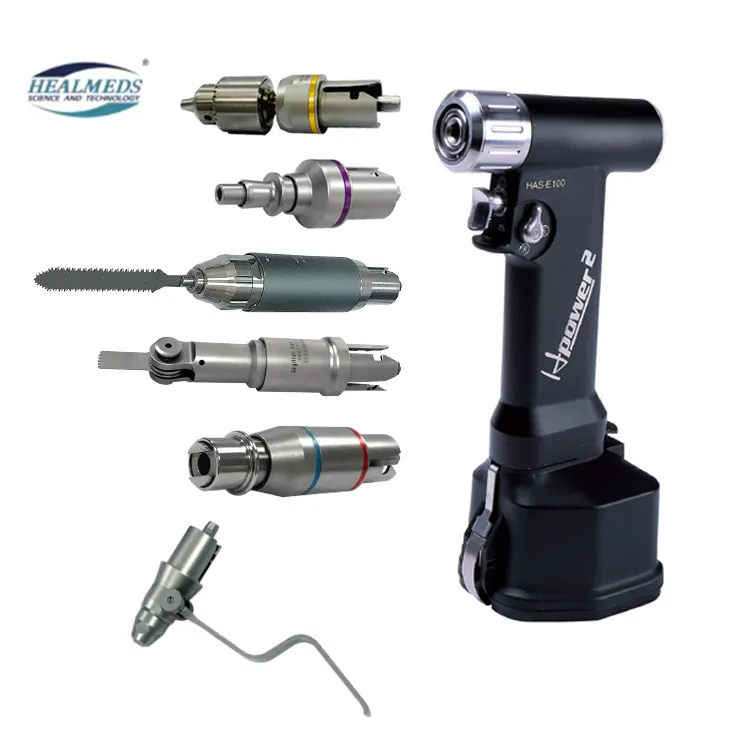

Q3: What attachments can be configured with the E100 Multifunction Drill?

The E100 can be configured with various attachments including the Key Chuck attachment, Reaming attachment, K-wire attachment (0.7-1.6mm/1.6-4.0mm), and Reciprocating Saw to meet different surgical requirements.

Q4: What is the capacity and voltage of the battery system?

It features a high-capacity Ni-MH battery of 2100MAH with a voltage of 9.6V, which provides a longer service life and stable power output for orthopedic procedures.

Q5: How does the handpiece design prevent slipping during surgery?

The surface of the handpiece body is treated with a frosted texture process. This effectively prevents slippage, ensures a comfortable hold, and reduces hand fatigue during extended surgical procedures.

Q6: What is the material used for the transfer shield?

The transfer shield is made of imported high-quality 304 stainless steel, ensuring excellent corrosion resistance and hygiene standards.
